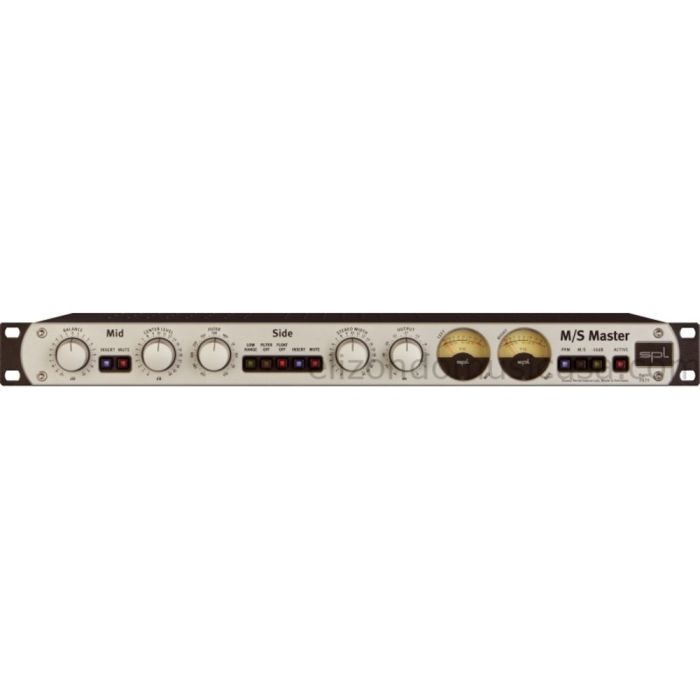

SPL M/S Master Mastering Processor

SPL M/S Master Mastering Processor

The M/S Master is your key to access the mid and side information of a mix. Discover the classic alternative to the L/R format and adjust the M/S proportions yourself. Insert all your outboard gear via intelligent send/returns and use it for L/R or M/S processing at the touch of a button.

Features

• Analog tool for M/S encoding
• Active control of M/S mix ratio
• Seamless integration of external processors
• One-button insertion of outboard gear in the M/S or L/R path
• Different VU-meter modes
• Low cut filter for the Side signal
• FLOAT function for better mono compatibility

Specifications:

• Inputs & Outputs: Electronically balanced instrumentation amplifiers
• Input impedance: 20 kOhm balanced/10 kOhm unbalanced; Max. input level: 20 dBu
• Output impedance: 150 Ohm balanced/75 Ohm unbalanced; Max. output level: 20 dBu
• Measurements:
• Frequency response (-3 dB): 10 Hz - 100 kHz
• Common mode rejection ratio: 60 dB (@ 1 kHz, 0 dBu input level and unity gain)
• Total harmonic distortion & noise: 0,007 % (@ 1 kHz, 0 dBu input level and unity gain)
• Signal to noise ratio (A-weighted): -82 dB
• Dynamic range (unweighted): 102 dB
• Power supply: Toroidal transformer
• Fuses: 230 V AC, 50 Hz: 315 mA; 120 V AC, 60 Hz: 630 mA
• Voltage selector: 115V/230V
• Power consumption @ 230 V: 9,1 W/10,8 VA?; @ 115 ? V: 5,6 W/7,1 VA
• Dimensions and Weight:
• Housing (W x H x D): 482 x 88 x 320 ?mm (depth including controls and sockets)
• Weight: 3,6 kg/7,94 lbs
• Notes: 0 dBu = 0,775 V.
