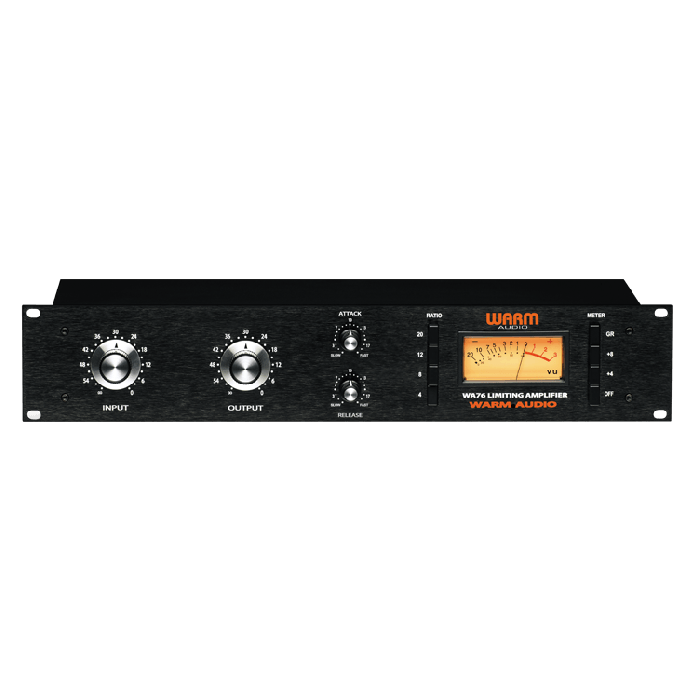

Warm Audio WA76 Discrete FET Compressor

$699.00
In stock
SKU
WA76

The WA76 Discrete Compressor is a modern reproduction of the Classic '76 Revision D. The WA76 has a fully discrete signal path and uses the original Reichenbach Engineering's (now CineMag) transformer design. The classic '76 was a major breakthrough in limiter technology, and used on hundreds of hit records since its inception. Engineers have craved the ultra-fast attack time and trademark sound of the '76 for decades, and now it is finally affordable! Our goal was to make a compressor of this pedigree affordable for the first time, without compromising the quality and design parameters that make this type of compressor so desirable.
  • Manufacturer: Warm Audio

Technical Specifications

  • UTILIZES PREMIUM GRADE INPUT AND OUTPUT CINEMAG USA TRANSFORMERS.
  • TRUE TO THE CLASSIC '76 COMPRESSOR IN DESIGN AND PERFORMANCE.
  • COMPLETELY DISCRETE SIGNAL PATH.
  • MODELED AFTER THE D REVISION.
  • SUPPORTS THE FAMOUS "ALL BUTTONS IN" RATIO SETTING.
  • ULTRA FAST ATTACK TIME.
  • CLASS A LINE LEVEL OUTPUT AMPLIFIER.
  • INPUT IMPEDANCE - 600 OHMS, BRIDGES-T CONTROL (FLOATING).
  • FREQUENCY RESPONSE ± 1 DB 20 HZ TO 20KHZ.
  • XLR AND TRS INPUTS. XLR AND TRS OUTPUTS.
  • 50DB OF GAIN.
  • LESS THAN 0.4% TOTAL HARMONIC DISTORTION FROM 50 HZ TO 20 KHZ WITH LIMITING.
  • SIGNAL TO NOISE RATIO IS GREATER THAN 74 DB AT +25 DBM.
  • EIN -104.1 DBM.
  • ATTACK TIME, 20 MICROSECONDS TO 800 MICROSECONDS.
  • RELEASE TIME, 50 MILLISECONDS TO 1 SECOND.
  • METER PROVIDES DB GAIN REDUCTION AND DB OUTPUT.
  • SWITCHABLE 115/230 VOLT IEC POWER INLET.
  • 19″ RACKMOUNT CHASSIS, 2U.
