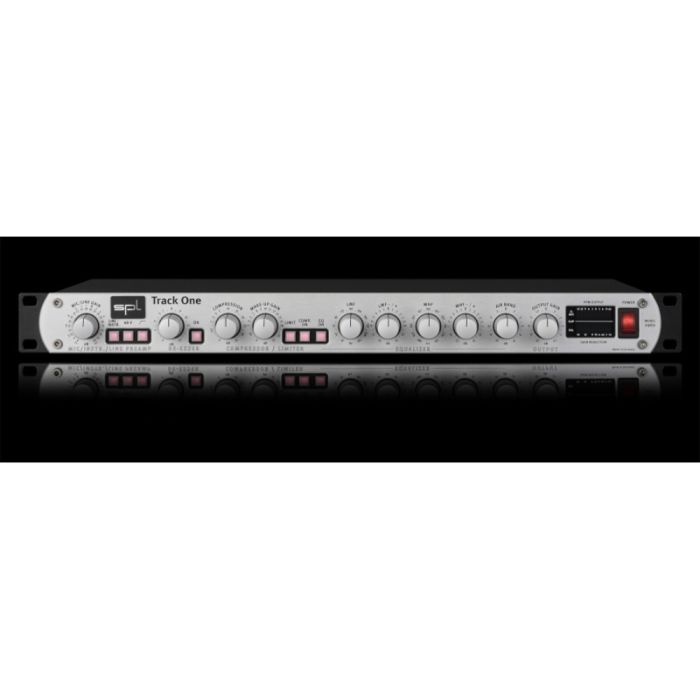

SPL Track One A complete SPL channel for high-definition recording

SPL Track One A complete SPL channel for high-definition recording

The Track One recording channel features a mic/instrument preamp, de-esser, compressor/limiter, EQ with Air band and an output stage in a slim 1U housing. It is especially popular in the European broadcasting industry. 24/192 AD converter and I/O transformers are optional.

Features

• Mic/Hi-Z preamp
• De-Esser
• Compressor/Limiter
• Semi-parametric EQ
• Air band EQ
• Output control with metering
• Easy to use
• Fulfills highest demands in sound quality and reliability

Specifications:

• MICROPHONE INPUT:
• Frequency response: 10 Hz-200 kHz (200 kHz = -3 dB)
• CMRR: 1 kHz = -80 dB; 10 kHz = -68 dB (at -20 dBu)
• THD & N (A-weighted): 20 dB = -97,5dBu; 40 dB = -91,0dBu; 65 dB = -69,6 dBu
• Dynamic response: 115 dB
• INSTRUMENT INPUT:
• Frequency response: 10 Hz-180 kHz (180 kHz = -3 dB)
• THD & N (A-weighted): 7 dB = -98,4 dBu; 20 dB = -95,8 dBu; 42 dB = -77,2 dBu
• Input impedance (Line): 12 kOhm / Instr.: 1 MOhm
• Max. input level (Line): +28 dBu / Instr.: +12 dBu
• Dynamic response: 115 dB
• OUTPUTS: Max. output level XLR/jack: +20 dBu; Output impedance: 50 Ohm
• POWER SUPPLY: Toroidal transformer: 15 VA; Fuses: 315 mA (230 V/50 Hz) and 630 mA (115 V/60 Hz)
• DIMENSIONS: Standard EIA 19 inch/1U housing: 482 x 44 x 210 mm; Weight: 3.1 kg
