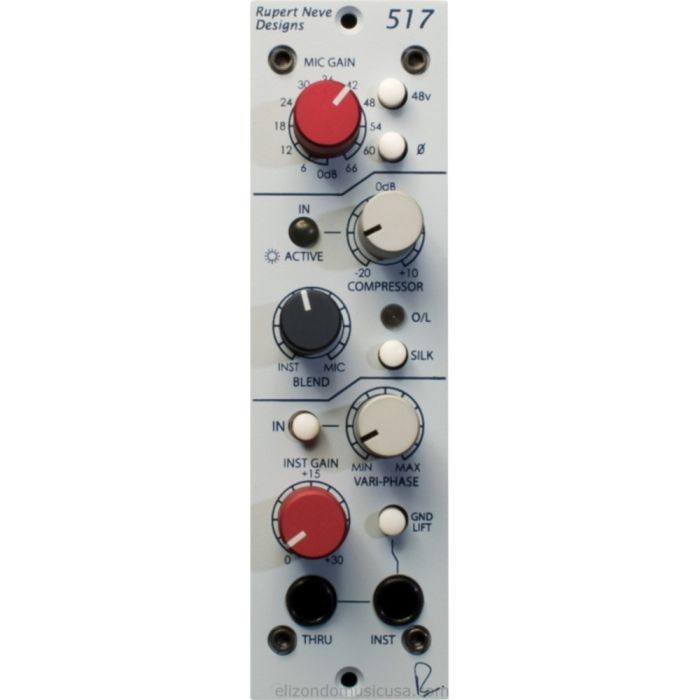

Rupert Neve Designs 517 500 Series DI/Pre/Comp with Variphase Series 500

$899.00
In stock
SKU
517

Rupert Neve Designs 517  DI/Pre amp/Compressor 500 Series

More Information
Video
UPC 752423656974
  • Manufacturer: Rupert Neve Designs



Based on the Portico 5017 Mobile Pre, the 517 provides world-class transformer-coupled micpreamp, compressor and DI circuitry, with Vari-phase, Silk and DI/mic blending capabilities in a 500 series model. As the first 500 series module designed by Mr. Rupert Neve, the 517 incorporates outstanding sonic quality with an indispensable feature set.

Mic Pre and Instrument Amplifier



The 517?s mic pre includes 66dB gain, and is based on the Portico 5017 design. The mic pre also incorporates a polarity reverse switch and phantom power. The separate instrument amplifier includes 30dB of gain, a ground lift, variable phase and an instrument Thru connection.

Blended Use

Used as a single channel device for instruments, the 517 can be used to phase align, combine and compress direct and amplified signals. To achieve this, use the DI for the instrument’s direct signal and the mic preamp for the speaker cabinet signal. The blend control is used for mixing direct and amplified signals to achieve the desired tonal blend between the two sources, and the variphase is used to minimize or extenuate phase cancellations between the two signals. To compress the blended signal, the internal compressor jumper must be set to the blend path (this is the default setting). This technique could also be used to create a single, mixed output of a guitar and vocals.

The Compressor

Based around a new LDR (light dependent resister) design, the 517?s opto-coupler compressor has been simplified to a single threshold control with auto make up gain. By default, the compressor is set to a fixed 2:1 ratio with fixed attack and release. To set the compressor, simply dial the threshold control down until the desired amount of compression is achieved. An LED light indicates when the compressor is active.

Vari-Phase

In addition to the standard polarity reverse, the 517?s vari-phase control may be used to adjust phase incrementally. This control is useful any time two signals derived from the same source are combined.

For instance, even with careful placement, the combination of close miced drums and overheads, can often yield hollow sounding results. By using the variable phase adjust, the direct signal can be phase rotated until the signals are naturally aligned.

This technique is also extremely useful when combined with the internal blend control on instruments. A bassist, using both direct and miced signals can blend the two into a single output, using the vari-phase to reach an optimal alignment. By adjusting the phase in the 517, the musician or engineer can find the absolute best mic position without regard to the phase relation to the direct signal.
