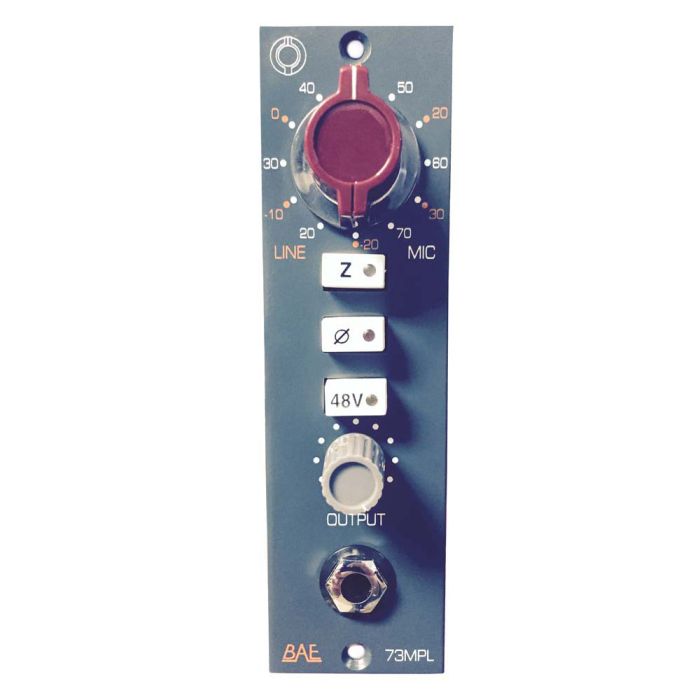

BAE AUDIO 1073MPL 500 Series Mic Pre

BAE AUDIO 1073MPL 500 Series Mic Pre

1073MPL Features

This is the 500 Series version of the 1073MP (a mic pre-amp version of the 1073 equaliser) having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.

Two selectable impedances makes the 1073MPL work well with a variety of microphones.

As a coloured and versatile mic-pre, the 1073MPL maintains its sonic signature across a wide bandwidth.

• All Class A, transformer-coupled design in a 500 series module.
• Original Marconi knobs.
• Input impedance selector switch between 1200 and 300 ohms.
• Line level capability for extra versatility as a line preamp.
• High impedance DI for guitar and synth.
• Same Carnhill St Ives transformers as the 1073 and 1084.
• Same modular design and hand-wiring BAE is known for.

1073MPL Specifications

Frequency Response
10Hz to -3dB at 55kHz

Line Input Impedance
10k ohms

Output Impedance
65 ohms

Common Mode Rejection Ratio
100dB min @ 60Hz

Maximum Output Level
+27.4 dBu @ 600 ohm

Gain dB
0 to 71 dB
