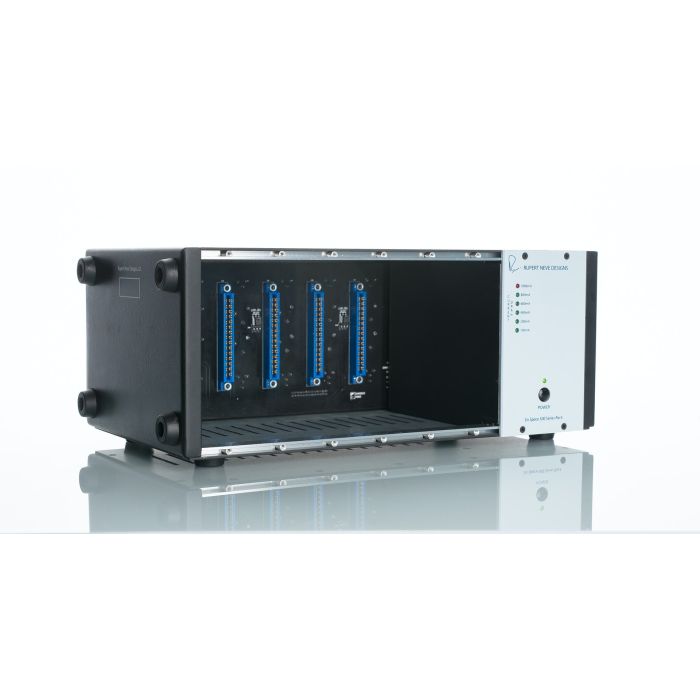

R6 lunch box rack with abundant power and versatile connections, the R6 delivers peace of mind for engineers who demand a higher degree of confidence in their 500 Series racks.
SIX CARD SLOTS WITH SERIOUS POWER
Each card slot is designed to fit a standard 500 series module. Even with modules that overdraw the 500 Series specification, the R6 has enough reserve power to maintain proper voltage.
LINK JUMPER
There are three link jumpers, which can be individually set to allow linking on Channels 1-2, 3-4, and 5-6. The link function is typically used to link the gain reduction of two compressors (such as our 543 or 535 modules).
CURRENT METER
An LED meter monitors the R6 current usage to ensure that you never run short on power. This meter can also be useful for troubleshooting a module that is severely overdrawing its allotment.
BULLETPROOF +48V PHANTOM SUPPLY
Provide rock-solid phantom power to your microphones with the R6’s robust 48V buss.
MASSIVE CONNECTIVITY
Interchangeable XLR, TRS, and DB-25 I/O connections are provided to ensure that you can connect wherever you go.
CHANNEL 7-8 THRU I/O
The channel 7-8 thru connections can be used as a way to quickly and easily convert your signal from or to DB-25, XLR, and TRS connectors.
ROAD-READY FRAME
A solid steel enclosure, two sets of rugged rubber feet for horizontal and vertical mounting and a collapsible handle make the R6 completely portable and ready for the road.
UNIVERSAL VOLTAGE IEC INPUT
The IEC power input accepts 100-240VAC, 50/60Hz input with a 50 Watt draw.
