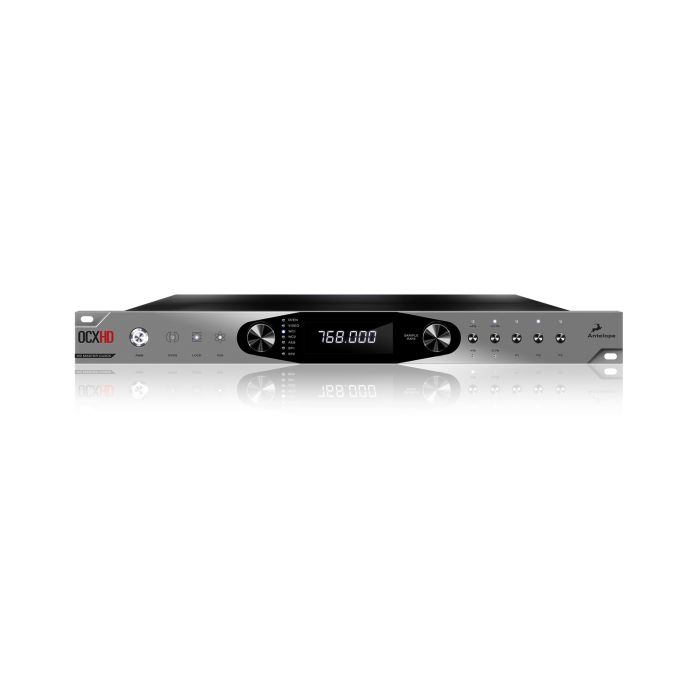

Antelope OCX HD Master Clock

The Perfect Solution For Mastering, Recording And Project Studios, Film-Scoring, Post-Production And Live Sound

For over a decade, Antelope’s legendary OCX Master Clock has been a dominant force in the audio world.

This legacy now continues with the newest master clock by Antelope Audio – Isochrone OCX HD.

OCX HD FEATURES
64-BIT ACOUSTICALLY FOCUSED CLOCKING
Antelope Audio game-changing 4th gen ACF jitter management algorithm

768 KHZ CLOCKING
OCX HD can output five different sample rates

GREATER CONNECTIVITY
AES/EBU, S/PDIF clocking outs up to 192kHz, video in on BNC and Atomic clock Input

DESCRIPTION
THE NEW STANDARD IN CLOCKING
OCX HD And The Vast Choice Of Clocking Options It Offers Studio Professionals Make It The Most Versatile Audio Clock On The Market
OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope’s best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator.

OCX HD Master Clock offers a great variety of clocking options – 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven, proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.

SPECIFICATIONS
Sample Rates Generated
32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 705.6, 768kHz

Master Clock Outputs
10x Word Clock Outputs up to 768kHz
4x AES/EBU Outputs up to 192kHz
2x S/PDIF Outputs up to 192kHz

Inputs
2x Word Clock Inputs up to 768kHz
1x Video Input accepting wide range of SD and HD video signals
1x Atomic Input
2x S/PDIF Inputs up to 192kHz
1x AES/EBU Input up to 192kHz
1x USB Input for control
Humidity
30 – 80% RH non-condensing

Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

Clock Calibration
< +/-0.001 ppm

Clock Stability
<+/- 0.02 ppm, oven controlled at 64.5 C/148.1 F

Clock Aging
< 1 ppm per year

Atomic Clock Input
1 x 10M Atomic Clock Input @ 75 Ohms 3Vpp on BNC

Sample Rates (KHz)
32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 (kHz)

Operating Temperature
0 – 50°C, 32-122°F

Weight
2.65 kg/5.84 lb

Dimensions
482.6 (W) х 230 (D) х 44 (H) mm
19 (W) x 9.05 (D) x 1.75 (H) inch

Power Supply
AC Universal Input ~95-245V, 20 Watts Max

System requirements
Windows
OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth (for firmware update): 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC
OS X: 10.9/10.10/10.11/10.12 (Sierra Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
