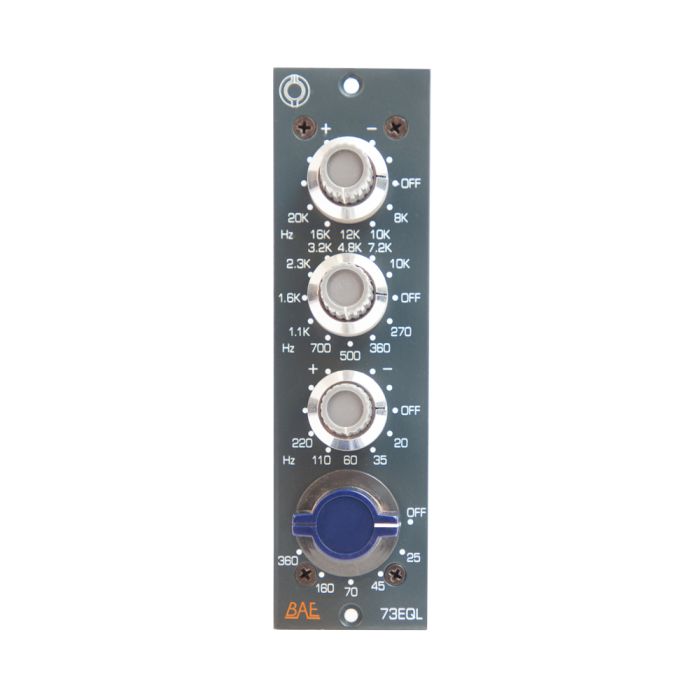

BAE Audio 73EQL 500 Series Module

BAE Audio 73EQL 500 Series Module

73EQL Features

The 73EQL delivers impressive tonal shaping options into a diminutive size, making it the ultimate accompaniment to a BAE 1073MPL 500 series preamplifier or as a stand-alone EQ to complement just any other input source. With a 3-band EQ section and highpass filter controls, the 73EQL is able to shape nuances of sound sources while imparting the classic sound character of the 1073 - this makes it the ultimate companion for on-location, studio recording, mixing or mastering applications.

• Extended high frequencies of 8 kHz, 10 kHz, 12 kHz, 16 kHz and 20kHz
• Extended mid-range of 270 Hz, 360 Hz, 500 Hz, 700 Hz, 1.1 kHz, 1.6 kHz, 2.3 kHz, 3.2 kHz,4.8 kHz, 7.2 kHz, 10 kHz
• Extended low frequency range of 20 Hz, 35 Hz, 60 Hz, 110 Hz and 220 Hz
• Extended highpass filter of 25 Hz, 45 Hz, 70 Hz, 160 Hz and 360 Hz
