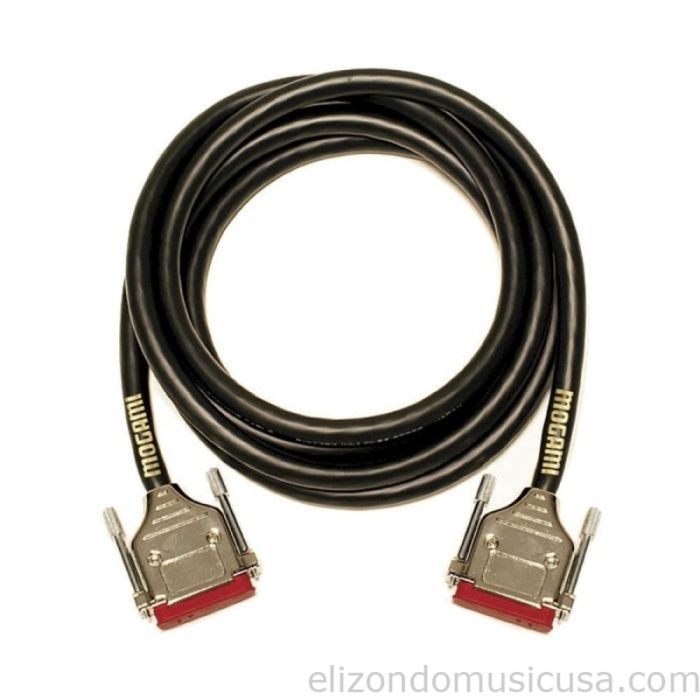

Mogami GOLD DB25-DB251.5 8 Channel Audio Snake Cable

Mogami GOLD DB25-DB251.5 8 Channel Audio Snake Cable

Buy Mogami Gold DB25-DB25-10 Analog Audio Snake Cable 10 feet

This is a highly-regarded, professional-grade analog multi-channel snake cable used in studio and broadcast environments. pre-assembled cable with DB25 connectors on both ends. It's designed to carry 8 channels of balanced analog audio over a single, robust cable using a multi-pin "snake" format. The "Gold" refers to Mogami's premium series, which uses their highest-quality materials and construction.

Specifications:

• Connectors: DB25 (25-pin D-subminiature) male to DB25 male.

• Length: 10 feet (the -10 in the model number).

• Configuration: 8 channels of balanced analog audio (16 individual conductors + shield).

• Pinout: The standard Tascam DB25 pinout for analog audio. This is the most common pinout in professional audio, used by:

  • Pin 1: Ch. 1 Hot (+) | Pin 14: Ch. 1 Cold (-)

  • Pin 2: Ch. 2 Hot (+) | Pin 15: Ch. 2 Cold (-)

  • ...and so on for channels 3-8. Pins 25, 13, and 26 are typically ground/shield.

• Cable Construction: Uses Mogami's premium Neglex Quad Cable for the internal conductors. This cable is famous for its:

  • Low Capacitance: Preserves high-frequency detail.

  • Excellent Noise Rejection: Superior shielding (both foil and braid) minimizes interference.

  • Durability: High-quality PVC jacket and robust strain relief at connectors.

• Connectors: Gold-plated contacts for optimal conductivity and corrosion resistance.
