BAE AUDIO 500c FET Compressor 500 Series

BAE AUDIO 500c FET Compressor 500 Series

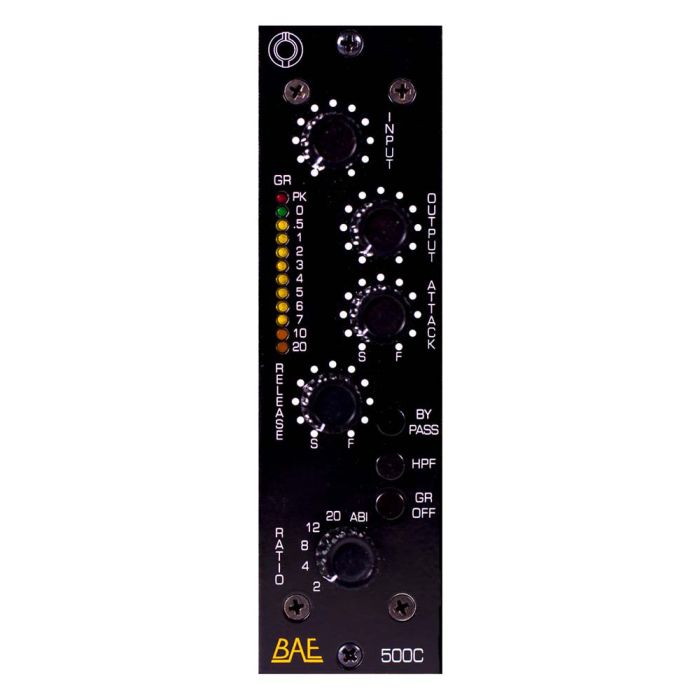

BAE 500C Fet Compressor Module

Introducing the BAE 500C: Embrace the Legendary Sound of Vintage FET Compressors

Inspired by the iconic FET compressors that defined the sound of the '60s and '70s music industry, the BAE 500C brings classic studio vibes to your fingertips. Boasting intuitive controls for input and output gain, alongside four selectable compression ratios (4:1, 8:1, 12:1, and 20:1), this unit is a powerhouse for sculpting your audio.

Beyond its ability to smooth out peaks, the 500C's premium components and timeless circuitry infuse your signal with coveted analog warmth, elevating everything from drums to bass to vocals. Crafted with meticulous attention to detail, each unit is hand-wired in California, ensuring unparalleled quality control, consistent performance, and a sound that stands the test of time.

Features

• FET gain reduction
• Three 2520 style opamps
• Transformer coupled output
• Feedback style peak limiter
• SC HPF
• Hard bypass
• Gain Reduction on/off
• Comp ratios: 2:1, 4:1, 8:1, 12:1, 20:1, ABI
• ABI All Buttons In
• Fully enclosed
• High quality components throughout

Specifications

• Max Input Before Clip: +27dBu
• Noise: -82dB (+4dBu input, 1KHz, A-weighted, GR off)
• THD+N: 0.15% (+4dBu input, 1KHz, A-weighted, GR off)
• Frequency Response: +0.3dB / -0dB (10-22KHz)
• SC HPF: 6dB/octave @ 125Hz
• Current Draw:Approx 120mA/Rail
