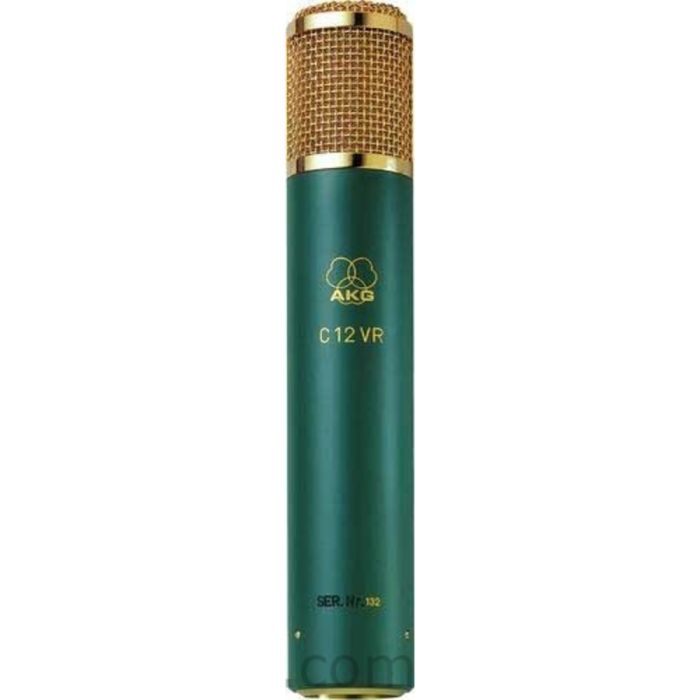

AKG C12VR Large Diaphragm Tube Condenser Microphone
Details
Production of the legendary C 12 ceased in 1963, and over the years, it became a highly sought-after collector’s item and prized recording instrument because of its exquisite sound. The new C 12 VR is a reincarnation of this spectacular microphone. The new C 12VR is true to the original C 12’s acoustical specifications with subtle refinements made possible by modern electronics and manufacturing technology. These refinements actually lower susceptibility to hum and noise as well as improve its ruggedness. The two 1-inch capsules are identical in performance to the original design with the famous AKG “voice-friendly” sound. The electronics section uses the same rare 6072 vacuum tube as the original to ensure the C 12 VR will deliver the trademark warmth, clarity and presence that characterized the original model. Nine different polar patterns are remotely selectable from the N 12 VR power supply. Other features include two bass roll-off filters (also remotely selectable), switchable pre-attenuation pads and an internally selectable +10 dB input sensitivity switch. The large core-section output transformer minimizes low-frequency distortion and special shock-mounting protects the circuitry and provides acoustic isolation. The C 12 VR comes in a special hard-shell metal case housing the microphone, its power supply, the shock mount, windscreen and a 10 m (33 ft) connecting cable. A copy of the frequency response graph is included along with the three-year warranty. Add magic to your sound with the AKG C 12 VR.
Features
- Classic 1-inch (25 mm) condenser tube performance of the original AKG C 12
- Multiple patterns (nine total) remotely controlled with silent switching
- Uses the original 6072 vacuum tube
- Uses the original 1950’s dual diaphragm design for sound that has the same warmth, clarity and presence of the original
- Internal microphone switching for pre-attenuation of -10, -20 dB and boost of +10 dB to accommodate all studio requirements
- External (in control unit) two-position bass cut/roll-off
Specifications
- Transducer type: Dual diaphragm, 1 in. (25 mm) diameter
- Diaphragm material: Gold sputtered mylar foil.
- Frequency response: 30 Hz - 20 kHz (±2.5 dB from published curves)
- Polar patterns: Omnidirectional, cardioid, and figure-8, with 6 intermediate patterns (silent switching)
- Impedance: 200 ohms (±25%)
- Recommended load impedance: 1000 ohms or greater
- Output connector (from control unit): XLR (pin 2 positive)
- Output connector (from microphone): Tuchel 12-pin
- Sensitivity at 1 kHz: 10 mV/Pa for all patterns; -40 dB (dB re 1 V/Pa)
- Equivalent noise level (A-weighted): 22 dB (DIN 45412)
- Sound pressure level for 3% THD: 128 dB (equivalent to 50 Pa)
- Pre-attenuation: -10 and -20 dB (at microphone)
- Sensitivity increase: 10 dB (at microphone)
- Low frequency roll-off/bass cut: two-position (at control unit)
- Power requirement: 115/230 Vac
- Microphone size: 1.65 in. dia (42 mm) 8.9 in. long (225 mm)
- Microphone net weight: 24 oz. (0.68 kg)
- Shipping weight: 10 lb. (4.5 kg)
- Accessories included: Aluminum flight case, N 12 VR remote power supply, H 15/T elastic suspension, MK 12V R 30 ft. (10 m) connecting cable, W 42 Foam windscreen
