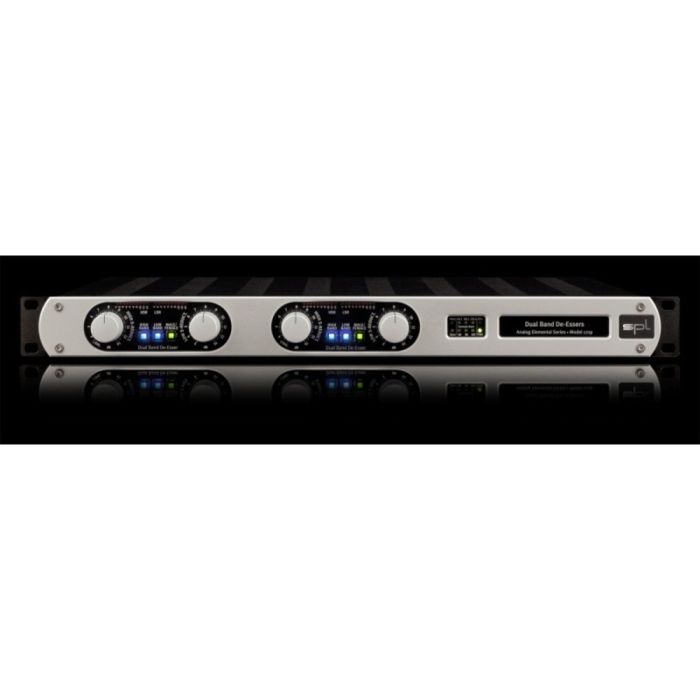

SPL Dual-Band De-Essers

SPL Dual-Band De-Essers

The Dual-Band De-Essers offer high and low band de-essing which both make use of our unique 'S' phase cancellation technique to removes sibilants fast and easy while keeping the original vocal "untouched". The high band operates an octave above the low band. Further features are Auto Threshold mode which keeps de-essing evenly intense regardless of the input level. Dual Band De-Esser: SPLs newest weapon in the fight against unwanted sibilants.

Features

• Two frequency bands that can be used independently or jointly
• Focused processing with high and low bands
• Increased processing effectiveness without introducing audible artifacts
• Auto-Threshold keeps de-essing evenly intense regardless of distance to microphone
• Male/Female modes adapting in the lower band to male or female voices
• Active switch
• Signal (SIG) LEDs
• High-band "S"-Reduction LED meter
• Low-band "S"-Reduction LED meter
• Options: 24bit/192kHz AD converter and Lundahl I/O transformers

Specifications:

• Frequency Range: 10? Hz-80?kHz
• CMR: 60?dBu (@ 1?kHz, 0?dBu input level and unity gain)
• S/N Ratio: -106?dBu (A-weighted)
• Dynamic Range: 128?dB
• THD&N: 0,01% (@ 1?kHz, 0?dBu input level and unity gain)
• Input: XLR socket, electronically balanced, optionally transformer balanced
• Impedance: ca. 20?kOhm
• Max. Input Level: +22?dBu
• Nominal Input Level: +4?dBu
• Output: XLR socket, electronically balanced, optionally transformer balanced
• Output Impedance: 75? Ohm/600 Ohm with transformer
• Max. Output Level: +22?dBu
• Signal-LED: -20dBu
• Overload-LED: +19 dBu (peak hold 1.5 seconds)
• -----------------------------------------------------------------------------
• Power Supply: Toroidal transformer
• Fuses: 230 V AC, 50 Hz: 315 mA, 115 V AC, 60 Hz: 630 mA
• Voltage Selector 115V/230V
• Power Consumption: @ 230? V: 9,1? W/10,8? VA; @ 115? V: 5,6? W/7,1? VA
• Housing (W x H x D) 482 x 88 x 320?mm (depth includes knobs and sockets)
• Weight: ca. 4,6?kg
