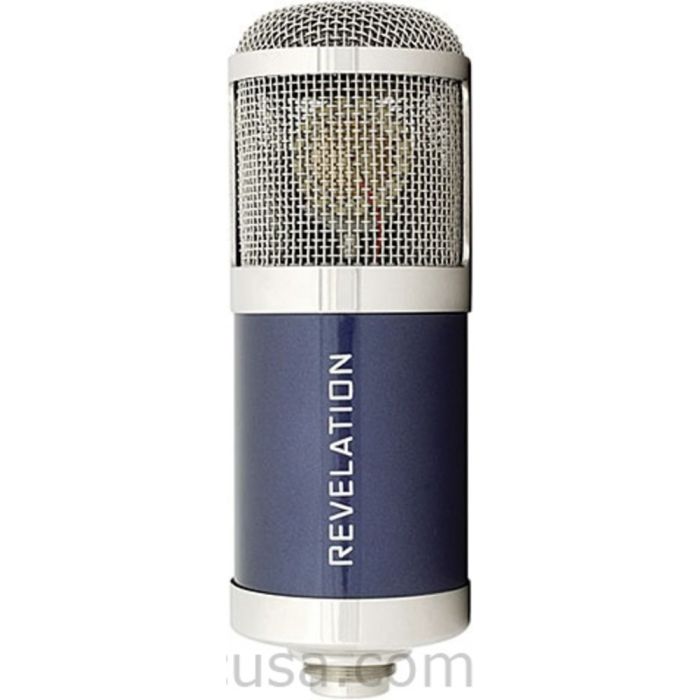

MXL Revelation Multi-Pattern Tube Condenser Microphone

MXL Revelation Multi-Pattern Tube Condenser Microphone

The MXL Revelation delivers the warmth and intimacy of a quality tube microphone with extended clarity and punch for balanced recording. A dual gold-sputtered, 6-micron diaphragm and hand-selected EF86 pentode tube deliver warm, rich and transparent sound, and polar pattern selection is virtually limitless thanks to the variable knob. Record vocals, instruments, percussion or use it as a room mic - the MXL Revelation can handle any recording task.

Features:

• Variable polar pattern control: Omni, Cardioid, Figure 8
• Hand-selected EF86 pentode tube
• Custom body design minimizes resonance

Specifications:

• Type: Variable Pattern Tube Condenser Microphone
• Diaphragm Dual Gold sputtered, 6 micron diaphragm
• Tube Type: EF86
• Frequency Response: 20 Hz-20 kHz
• Polar pattern: Continuously Variable
• Sensitivity: -40 dB re 1 V/Pa
• Output Impedance: 140 ohms
• Attenuation Switch: 0 dB, -10 dB
• High Pass Filter: 12 dB/octave @ 125Hz
• Equivalent noise: -18 dBA (A-weighted IEC 651)
• S/N Ratio: 76 dB
• Max SPL for .5% THD: 138 dB SPL
• Power Requirements: Revelation Power Supply Unit 110/220 VAC, 50/60Hz
• Size: 7.5" x 2.5" (190 x 63.5 mm)
• Weight: 2 lbs. (907 g)
• Metal Finish: Dark Violet and Chrome
