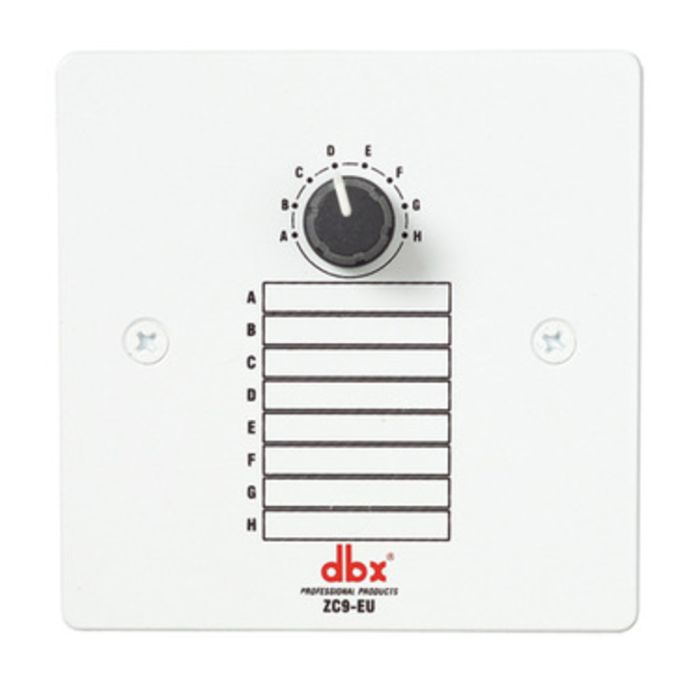

dbx ZC9 Wall Mounted 8 Position Zone Controller

dbx ZC9 Wall Mounted 8 Position Zone Controller

The Zone Controllers offer extended utility to the DriveRack(R) and ZonePRO(TM) families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

Architects' and Engineers' Specifications:

The remote device shall provide rotary switch source selection for the ZonePro 1260 and 1261. The remote shall have DIP switch identification and connection to the device being controlled shall be via CAT 5 cable and RJ-45 connectors. The device shall be a ZC-9-EU remote control.

Specifications
