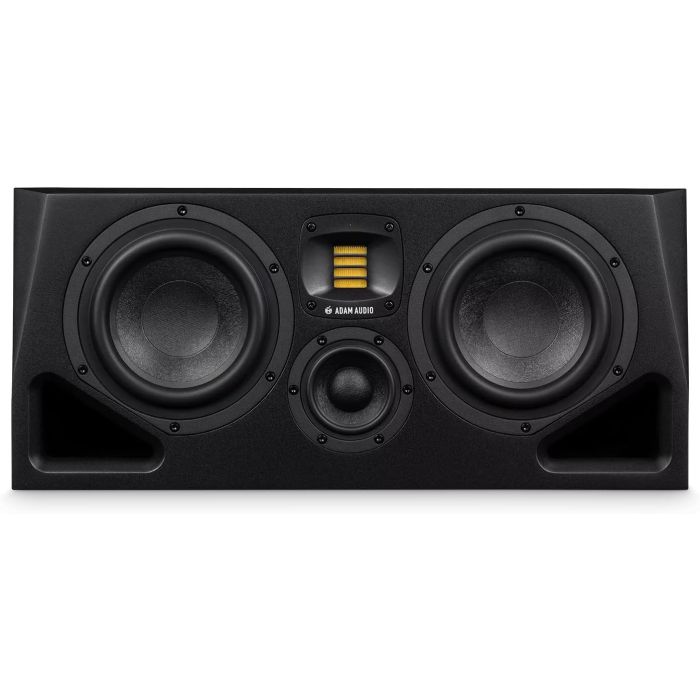

ADAM Audio A77H Horizontal Powered Studio Monitor (single)
The A77H is a true three-way midfield monitor that capitalizes on the latest ADAM Audio technologies to deliver a rich, spacious, and enveloping sound.
Incorporating two 7-inch woofers, a midrange driver, and ADAM Audio's X-ART tweeter, the A77H delivers an ultra-wide frequency range. The addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements
Main Features
- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 3.5" DCH Midrange Driver
- 2 x 7'' Woofer (Multi-Layer Mineral)
- Total Peak Amp. Power: 340 W
- Frequency Response @ -6 dB: 34 Hz - 45 kHz
- Max. peak SPL per speaker at 1 m: 106 dB SPL
A Control
The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over ethernet using A Control. The application can be downloaded free of charge for Windows and MacOS in the MyADAM user area upon registration of an A Series monitor.
Real-Time Remote Control
The backplate of A Series monitors offers a variety of equalization and tuning options, but quite often the backplate is not accessible from the listening sweet spot. Using A Control you can make changes to these settings from the comfort of your sweet spot and be confident in your decisions.
Advanced Correction
For some users the backplate options might not offer enough choice and precision. Using A Control you can dial in exact tunings over six bands of parametric equalization and low and high shelf filters. Each filter band can be freely adjusted for gain, frequency and Q value to give the user complete freedom in perfecting the sound of the loudspeaker in the room.
Integrated Sonarworks Sound ID Reference
A Control facilitates our collaboration with industry leaders Sonarworks. Using the SoundID Reference option, calibration curves generated by the Sonarworks application can be imported into A Control and pushed directly to an embedded platform on A Series monitors. When this option is enabled, the calibration is happening directly on the monitor and thus no additional VSTs or software applications are required. It also means you are hearing calibrated audio regardless of your sound source.
Specifications:
- Configuration: Three Way
- LF Driver Size: 2 x 7" Woofer
- LF Driver Type: Multi-Layer Mineral Fiber
- MF Driver Size: 3.5" Driver
- MF Driver Type: Dome Cone Hybrid, Multi-Layer Mineral Fiber
- HF Driver Type: Rotatable X-ART with HPS Waveguide
- LF Driver Power Amp: 250W
- MF Driver Power Amp: 70W
- HF Driver Power Amp: 20W
- Total Power: 340W
- Frequency Response: 37Hz-41kHz (-3dB), 34Hz-45kHz (-6dB)
- Crossover Frequency: 400Hz, 3.0kHz
- Maximum Peak SPL: 106dB (sine bursts), 118dB (IEC-weighted noise)
- Input Types: 1 x XLR, 1 x RCA
- Other I/O: 1 x RJ45 (remote control)
- Features: Room Correction Controls, Voicing Select
- Software: A Control
- Enclosure Type: Dual Front Ported
- Enclosure Material: Vinyl Wrapped MDF
- Height: 9.25"
- Width: 20.87"
- Depth: 13.75"
- Weight: 37.68 lbs.
- Warranty: 5 Years ( 2 years warranty plus 3 year option when you register )
