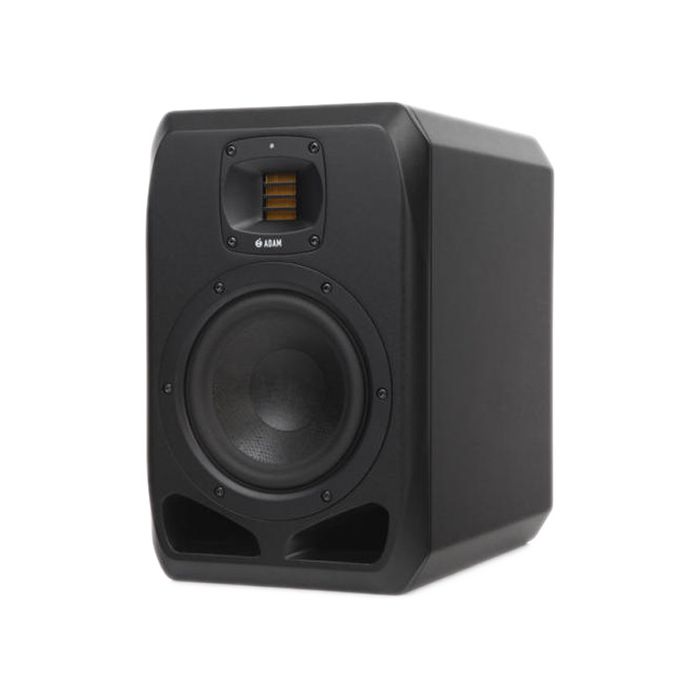

Adam Audio S2V 2-Way Active Nearfield Studio Monitor (Single)
Adam Audio S2V Studio Monitor
The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range. The carefully refined S-ART tweeter, handbuilt as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot.
The S2V's compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.
The S Series' custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers' DSP functions via a software front-end.
With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.
Features
- German Handmade Precision S-ART Tweeter with HPS Waveguide
- 7" Woofer (Hexacone)
- Total RMS Amp. Power: 350 W
- Frequency Response: 35 Hz - 50 kHz (-20 dB)
Specifications:
- Monitor Type & Configuration: Active 2-Way
- Total Power Output : 350 W RMS
- Tweeter: 1x 2" / 50.8 mm Ribbon
- Woofer: 1x 7" / 17.8 cm HexaCone Cone
- Voice Coil: 1.5" / 39 mm
- Frequency Range: 35 Hz to 50 kHz
- Audio I/O: 1x XLR 3-Pin Balanced Input (48 Kilohms)
- Digital Audio I/O: 1x XLR 3-Pin AES3 Input Output: 1x XLR 3-Pin AE
- Enclosure : Bass-Reflex/Ported, Shielded
- Drivers: Tweeter 1x 2" / 50.8 mm Ribbon
- Woofer : 1x 7" / 17.8 cm HexaCone Cone
- Voice Coil: 1.5" / 39 mm
- Amplifiers : HF: 50 W Class-AB LF: 300 W Class-D
- Maximum Sound Pressure Level (SPL) : 120 dB
- Total Harmonic Distortion (THD) : 0.4%
- Maximum Input Level : +24 dBu
- Signal Processing : EQ 1x HF Shelf 1x LF Shelf
- Crossover Frequency : 3 kHz
- USB : 1x USB-B (Remote)
- AC Input Power : 100 to 240 VAC, 50/60 Hz
- Weight : 24.2 lb / 11.0 kg
- Dimensions (W x H x D) : 8.7 x 13.6 x 13.3" / 222 x 346 x 338 mm
