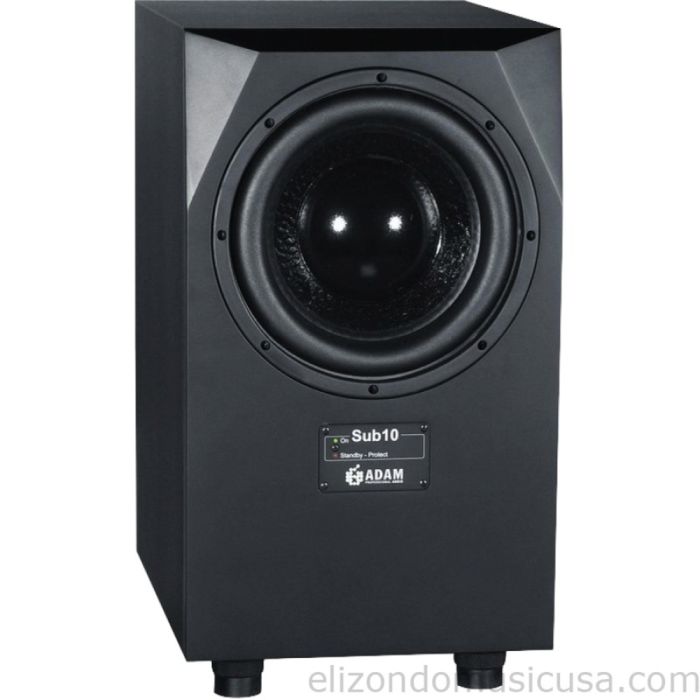

The Sub10 Mk2 and the Sub12 are powerful subwoofers designed to extend the low frequency capabilities of any near or midfield monitoring and are ideal matches for ADAM monitors such as the AX- or the SX-Series.
A large (2”) voice coil is driven by a 200W Ice Power amp. This amp stays cool as it uses PWM technology in the amp and the power supply sections, producing > 90% overall efficiency, and can handle its maximum power without danger to the electronics or the driver. The Sub10 Mk2 houses an 10” woofer, capable of a frequency response of 25Hz - 150Hz.
A new down-firing bass reflex tube that, due to its shape and size, avoids unnecessary ventilation noise. For larger rooms or higher levels it is possible to chain as many ADAM Subs together as necessary. All inputs and outputs have both XLR and RCA (cinch) connectors.
| Number | 1 |
| Basket Ø | 10" (260 mm) |
| Voice coil Ø | 2" (50 mm) |
| Cone material | Paper |
| Subwoofer | 1 |
| Amp. power RMS / music | 200 W / 300 W |
| Analog | XLR / RCA |
| Panel | Rear |
| Frequency response | 25 Hz - 150 Hz |
| THD > 60 Hz | ?1 % |
| Max. peak | ?113 dB |
| Crossover frequencies | 50 - 150 Hz |
| Input impedance | 10 KOhm |
| Weight | 46.3 lb (21 kg) |
| Height x Width x Depth | 22" (560 mm) x 12" (300 mm) x 15.5" (400 mm) |
| Warranty | 5 Years |
