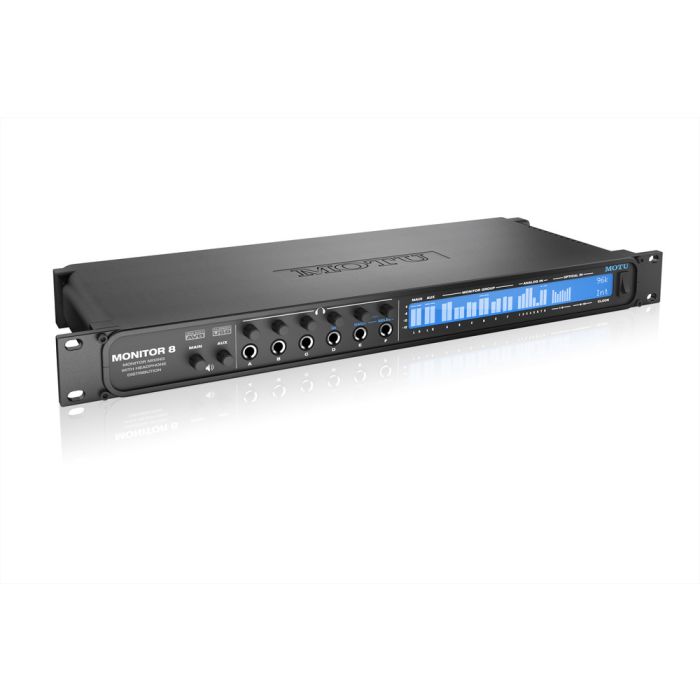

MOTU Monitor 8 Mixer Headphone Amp USB2 / AVB Audio Interface
Monitor 8 is three products in one, monitor mixer, headphone amp and audio interface. It can serve as your main audio interface, in the studio, on stage and much more. You can mix 24 inputs, multichannel computer audio, dozens of AVB networking to eight stereo outputs groups.
Six monitor groups with multiple outputs each group output provides multiple mirrored outputs, which can be fed to in-ear monitoring systems or other stereo destinations. The Monitor 8 connects to a computer through USB 2.0, which provides more than enough bandwidth for the twenty-four channels, and, when connected through AVB networking, supports hundreds of network channels.
Specifications:
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Analog inputs | 8 x 1/4" TRS line inputs (balanced/unbalanced)
Max level: +24 dbU (digitally adjustable -96 to +22 dB)
Trim: -96 to +22 dB (digitally adjustable) |
| Analog outputs | 10 x 1/4" TRS line out (balanced, DC coupled)
6 x 1/4" TS line out (summed mono)
2 x XLR line out (pin 2 hot)
Max level: +22 dBu
Trim: 127 to 0 dB (digitally adjustable)
12 x 1/4" TRS stereo headphone |
| Digital Input | 2 banks (16 ch) of ADAT optical input at 1x rates
1 bank (8 ch) of SMUX optical input at 2x rates
Stereo TOSLink (optical S/PDIF) on Bank A (optional) |
| Total I/O connections | 24 inputs and 30 outputs (54 total) at 1x rates
16 inputs and 30 outputs (46 total) at 2x rates
8 inputs and 30 outputs (38 total) at 4x rates |
| Total I/O channels | 24 inputs and 16 outputs (40 total) at 1x sample rates
16 inputs and 16 outputs (32 total) at 2x sample rates
8 inputs and 16 outputs (24 total) at 4x sample rates |
| Computer I/O | 1 x USB 2.0 audio class compliant
USB 3.0 and iOS compatible
1 x AVB Ethernet (requires OS X Yosemite) |
| Computer I/O channels | USB 2.0 (44.1 to 48 kHz): 64 in/out
USB 2.0 (88.2 to 96 kHz): 32 in/out
USB 2.0 (176.4 to 192 kHz): 24 in/out
AVB Ethernet: 16 to 128 in/out, depending on
host computer speed |
| Headphone | 12 x 1/4" TRS stereo phone (mirrored in 6 pairs) |
| Front panel | 6 x 1/4" TRS headphone output
1 x digital rotary encoder - main out volume
1 x digital rotary encoder - aux out volume
6 x digital rotary encoders - phone volume
324 x 24 pixel LCD for level meters / menu nav
1 x AC power switch |
| Power | International 100-240V autoswitching supply
50-60 Hz - 0.5A max |
Mac System Requirements
- 1 GHz Intel-based Mac or faster
- 2 GB RAM; 4 GB or more recommended
- Mac OS X version 10.8 or later
- Available high-speed USB 2.0 or AVB Ethernet port*
- A large hard drive (at least 500 GB for recording)
- *AVB Ethernet audio interface operation requires OS X Yosemite
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 7, 8 or 10
- Available USB 2.0 or 3.0 port
- Available Ethernet port for firmware updates
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
- Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.
Included Software
- Thunderbolt and USB 2.0 drivers
- MOTU AVB Discovery App for Mac & Windows (finds connected MOTU interfaces)
- MOTU AVB Discovery App for iOS (available from Apple App Store)
- MOTU AVB Control web app (served from the hardware itself)
- AudioDesk 4.0 for Mac and Windows (separate download)
Operating Systems
- For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
