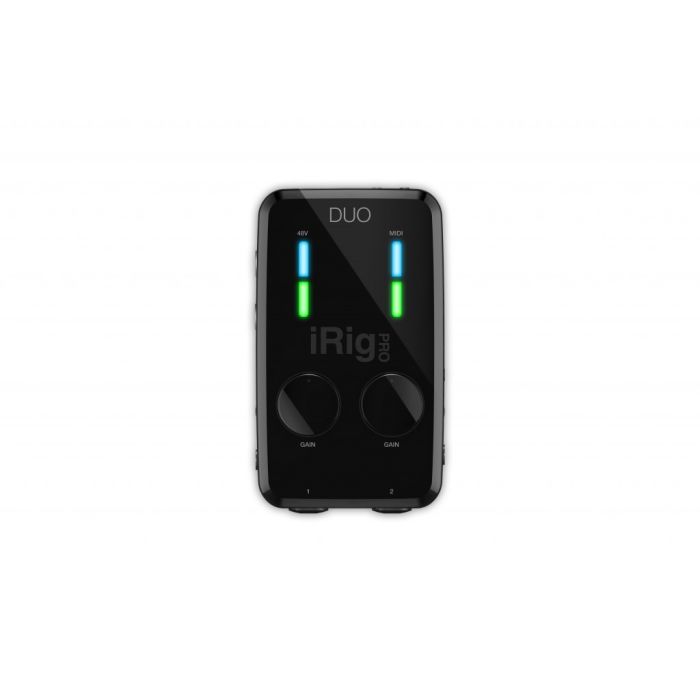

iRig Pro Duo Specifications
Microphone Input
- Microphone Inputs: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: approx 2 kOhms
- Gain Range: 48 dB
- Phantom Power: +48V ± 4V
- Frequency Response:
• from 5 Hz to 21 kHz (-3dB) Gain @ min
• from 30 Hz to 21 kHz (-3dB) Gain @ max
- Input Noise:
• -103 dB(A) Gain @ min
• -86 dB(A) Gain @ max
Instrument Input
- Instrument Inputs: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
- Instrument Input Level: from 30 mVpp to 6.9 Vpp
- Instrument Input Impedance: 1 MOhms
- Gain Range: 27 dB
- Frequency Response:
• from 2 Hz to 21 kHz (-3dB) Gain @ min
• from 5 Hz to 21 kHz (-3dB) Gain @ max
- Input Noise:
• -104 dB(A) Gain @ min
• -102 dB(A) Gain @ max
Line Output
- Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
- Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
- Maximum Output Level: +16 dBu into 600 Ohms balanced load
- Frequency Response: from 10 Hz to 21 kHz (-3dB)
- Output Dynamic Range: 106 dB(A)
- Output Impedance: 150 Ohms balanced
Common
- AD and DA Resolution: 24-bit
- Sampling Rate: 44.1 kHz and 48 kHz
- Power: USB bus power, battery power (2xAA), or DC power supply (9VDC, from 500mA up, positive outside - not included)
- Metering: Multicolor LED
- Size: 75mm/2.95" x 127mm/5" x 37mm/1.46"
- Weight: 197.2g/6.96oz (batteries excluded)
- Battery Life:
• Recording - Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline)
• Playback - Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)
*Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
**Min load condition is as follows: music playing, phantom power OFF.
Package includes
- iRig Pro Duo universal dual channel Audio-MIDI interface
- Lightning to Mini-DIN connection cable (60cm/23.62")
- Micro-USB-OTG to Mini-DIN connection cable (60cm/23.62")
- USB to Mini-DIN connection cable (60cm/23.62")
- 2 x 2.5mm jack to MIDI cable (160cm/63")
- 2 x 1.5V AA Battery
Dimensions
- Size: 75mm/2.95" x 127mm/5" x 37mm/1.46"
- Weight: 197.2g/6.96oz (batteries excluded)
- Lightning to Mini-DIN connection cable: 60cm/23.62"
- Micro-USB-OTG to Mini-DIN connection cable: 60cm/23.62"
- USB to Mini-DIN connection cable: 60cm/23.62"
- 2.5mm jack to MIDI cable: 160cm/63"
Requirements
iOS Devices
Compatible with iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad 4th generation, iPad mini. iOS 6.0 or later is required.
Also compatible with iPhone 7 Plus and iPhone 7.
Computers
Mac®: Mac OS X 10.6 or later. One free USB port.
Windows®: Support using the ASIO4ALL driver on Windows XP/Vista/7/8/10. See our FAQ here for further details.
Android Devices
Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.
