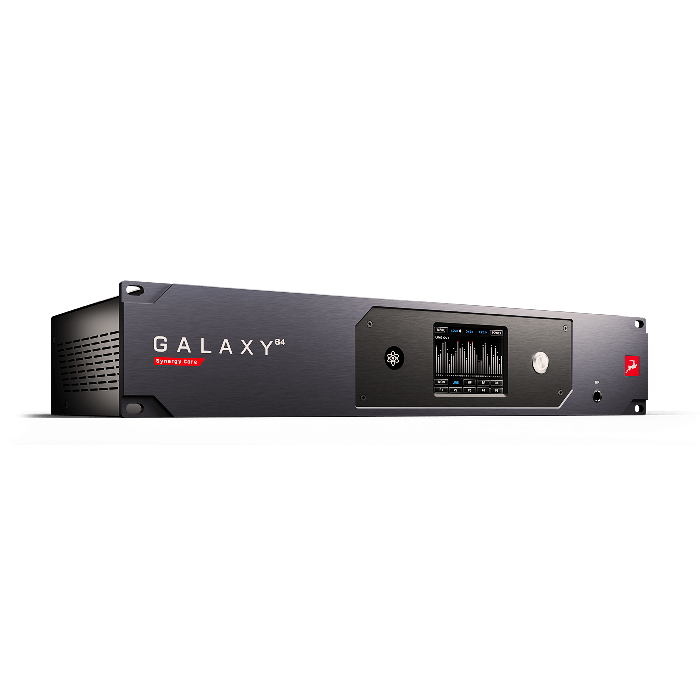

Galaxy 64 synergy 64 Channels of analog audio, Dante & HDX connectivity in one device
Galaxy 64 Synergy Core is a high-end recording system that connects your entire studio within a 2U rack space while providing high-fidelity audio and onboard effects processing for your most demanding projects. With Dante, HDX and Thunderbolt connectivity, the world’s first 64-channel AD/DA converter offers unbeatable flexibility when moving sound around your high-profile production facility, live stage, broadcast, or other enterprise applications.
More streamlined workflow, less clutter
The interface is designed to be the hub of your entire recording environment that eliminates the need for any expansion modules and cards, thus centralizing your entire setup. Switching from project to project is effortless with the fast recall of presets and adapting to different workflows is made easier by allowing you to address numerous applications using a single hardware frame.
World’s first 64-channel AD/DA converter in 2U rack space
Galaxy 64 Synergy Core is the only interface to offer two Dante ports for audio networking, four HDX ports for a full array of 128 channels in Pro Tools as well as Thunderbolt connectivity. These features can be used simultaneously with multiple systems for easy adaptation to different workflows with preferred DAW applications. This is all made possible by utilizing our exclusive FPGA configuration and advanced digital routing.
2x DANTE® Ports (64 channels at 24-bit, 48kHz)
Primary and Secondary Dante® connections on RJ 45 (Ethernet) ports. The number of input and output audio channels is sample rate-dependent.
4x HDX Ports (128 channels at 24-bit, 192kHz)
Four HDX ports enable interfacing to two HDX cards simultaneously for a primary/secondary recording setup or a full array of 128 channels.
2x Thunderbolt 3™ Ports (64 channels at 24-bit, 192kHz)
Two Thunderbolt 3 ports for PC/Mac connection. The left port enables USB-C connection to a secondary computer for remote control purposes.
2x Optical MADI Ports (64 channels at 24-bit, 48kHz)
Should the need for more channels arise, use the MADI ports on optical SC connectors to daisy-chain with another audio interface.
2x AES/EBU Ports (2 channels at 24-bit, 192kHz)
Two AES/EBU ports on XLR connectors for digital expansion to AD/DA converters or monitoring systems.
2x S/PDIF (input and output) (2 channels at 24-bit, 192kHz)
Two S/PDIF ports RCA connectors for digital expansion to AD/DAconverters or monitoring systems.
ATMOS-READY EMBRACE THE FUTURE OF AUDIO PRODUCTION
A complete Atmos-ready surround and immersive audio monitoring system is supported by the interface, compatible with over 23 audio formats from stereo to Dolby Atmos 9.1.6. It offers precise speaker and room calibration tools as well as intuitive monitoring controls and fast preset recall functionality, designed to increase productivity.
MRC
As a physical extension of the system, the compatible Antelope MRC hardware controller provides streamlined and tactile controls that are key for effortless yet advanced monitoring.
Dante® audio over IP Build your network
Dante is the number one audio over IP choice for installations, live events, production facilities, and any situation where large volumes of high-definition digital audio must be reliably transferred over long distances. Achieved using just an Ethernet port, Dante connection is preferred among other digital network standards, due to its easy configuration and variety of product support.
The configuration provides straightforward integration and reliable redundancy, with the secondary RJ-45 port serving as a backup 64-channel Dante route. Galaxy 64 Synergy Core allows extensive real-time backup and multi-level recording options throughout every production stage.
HDX connection 128 channels in Pro Tools at 192kHz sample rate
The only interface to offer four HDX ports provides primary or secondary recording solution per card or a full array of 128 channels of recording split to two systems. What is especially impressive about our exclusive FPGA configuration is that it allows this channel count to be maintained at high sample rates such as 192kHz.
Unlike modular systems, all I/O is available at any time without the need to exchange boards or change setups. This is the easiest way to interface multiple Pro Tools sessions through several hosts.
High-fidelity conversion
High-spec AD/DA converters provide low total harmonic distortion and signal-to-noise ratio for artifact-free recording sessions. The Galaxy 64 Synergy Core does not require external converters for monitoring because of the dedicated mastering-grade monitor converter. It facilitates audio reproduction with a wider soundstage for critical listening without coloration or signal degradation.
37 Real-time effects included
Galaxy 64 Synergy Core includes a massive expandable library of 37 real-time effects. It is largely composed of software emulations of vintage analog gear found in world-renowned recording studios. The collection does not lack in variety – you can find rarities like a boutique autowah pedal from Finland, a Danish master-grade compressor or emulation of famous units like American-design EQs.
18 Equalizers, 12 Compressors & Limiters, 2 Preamps & Channel Strips, 1 Reverb, 1 De-Esser, 1 Tremolo, 1 AutoWah Pedal, 1 Guitar Tuner
Intuitive control over all features
Take charge of each aspect of the unit’s functionalities with a convenient software Control Panel. It provides intuitive control of all settings, gain adjustments, real-time effects, metering, and presets. From the Control Panel you have immediate access to the flexible Routing Matrix and the low latency internal mixers. Every Galaxy 64 Synergy Core feature works seamlessly once you establish your Control Panel workflow.
