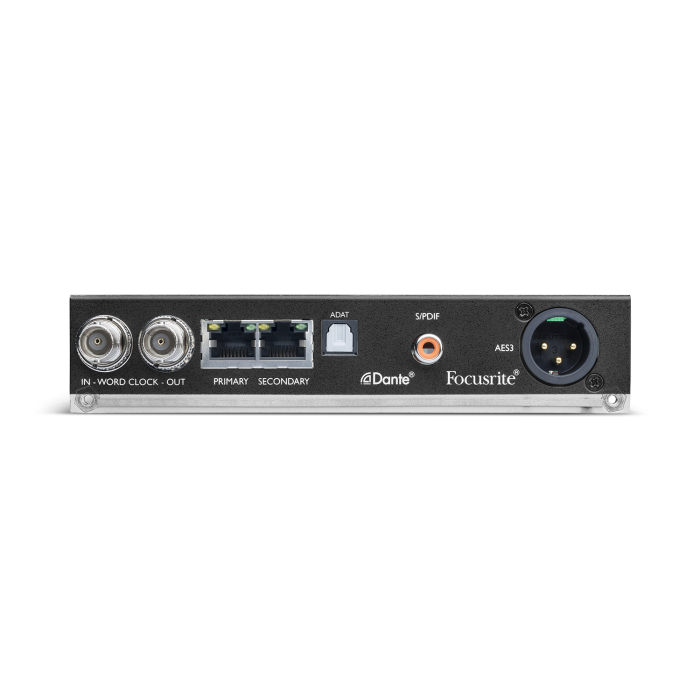

Focusrite ISA ADN2 Dante A/D Card

With the introduction of the ISA ADN2, the classic ISA mic pre can be implemented directly on a Dante network, providing console-grade preamps to the most advanced of audio networks. ISA ADN2 is an optional two-channel A-D card that provides high-quality analogue-to-digital conversion for the ISA One mic preamp and DI. Featuring Dante, AES3, ADAT and S/PDIF connectivity, the card operates at sample rates up to 24-bit/192kHz.

The card offers a familiar set of standard professional connectors with primary and secondary RJ45 Dante output ports, an XLR connector for AES3 output, a TOSLINK connector for ADAT output and RCA connector for S/PDIF output. Word Clock I/O on BNC connectors allows synchronisation with many external devices.

Dante outputs on the card provide ISA One with network connectivity to all Focusrite RedNet devices and Red interfaces, as well as any other Dante-enabled device from hundreds of manufacturers. Metering and settings are accessed through RedNet Control, routing is configured using Dante Controller. Both RedNet Control and Dante Controller software are included.

Key Features

• Two-channels of high-quality, precision analogue-to-digital converter for ISA One
• Up to 24-bit/192kHz sample rate
• Dante connectivity via Primary and Secondary Ethernet ports provide redundancy and auto switchover in case of failure
• Two-channel XLR connection for AES3 output
• Two-channel RCA connection for S/PDIF output
• Two-channel TOSLINK connector for ADAT output
• Word Clock I/O on BNC connectors allows synchronisation with many external devices
• RedNet Control and Dante Controller software (included) allow Dante routing and control from a computer; no hardware patching required

Warranty

Enjoy three years of warranty

Wherever you happen to be in the world, you can rely on a three-year warranty if any Focusrite Pro hardware needs repairing or replacing due to a manufacturing fault.



Product Specifications

What's in the box:

• ISA ADN2 Two-channel A-D Card
• Safety Information sheet
• Focusrite Pro Important Information Guide

Included Software:

• RedNet Control
• Dante Controller

System Requirements:

• Mac OS X:
  • 10.12 macOS Sierra
  • 10.13 macOS High Sierra
  • 10.14 macOS Mojave
  • 10.15 macOS Catalina



• Windows:
  • Windows 7 (32/ 64 bit)
  • Windows 8 (32/ 64 bit)
  • Windows 10 (32/ 64 bit)

Feature Specifications:

Audio Performance

• 0 dBFS Reference Levels : 22dBu
• Frequency Response: 20Hz - 20kHz ±0.1dB
• THD+N: -105dB (0.0006%) unweighted, 20Hz - 20kHz; -1dBFS input
• Noise in Presence of Signal: -121dBu 'A'-Weighted (typical)
• Dynamic Range: 121dB 'A'-weighted (typical), 20Hz - 20kHz

Digital Performance

• Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
• Clock Sources:Internal or Word Clock

Crosstalk

• Input to Input: < -100dB; 20Hz - 20kHz (driven channel at -20dBFS)

Front Panel Output Connectivity Dante

• Channel Count: 2 x Dante channels
• Output: 2 x Ethernet standard RJ45 connectors (Compatible with Cat 5e and above).

AES3

• Channel Count: 2 x AES3 channels
• Output: 1 x Male XLR

ADAT

• Channel Count: 2 x ADAT channels
• Output: 1 x TOSLINK connectors
• Channel Assignments @ 44.1 kHz, 48 kHz: Port 1 = Channels 1 - 2
• Channel Assignments @ 88.2 kHz, 96 kHz: SMUXI: Port 1 = Channels 1 - 2
• Channel Assignments @ 176.4 kHz, 192 kHz: SMUXII: Port 1 = Channels 1 - 2

S/PDIF

• Channel Count: 2 x S/PDIF channels
• Output: 1 x RCA phono socket

Word Clock

• Word Clock Input: 1 x BNC 75Ω port (Switchable Termination)
• Word Clock Output: 1 x BNC 75Ω port
