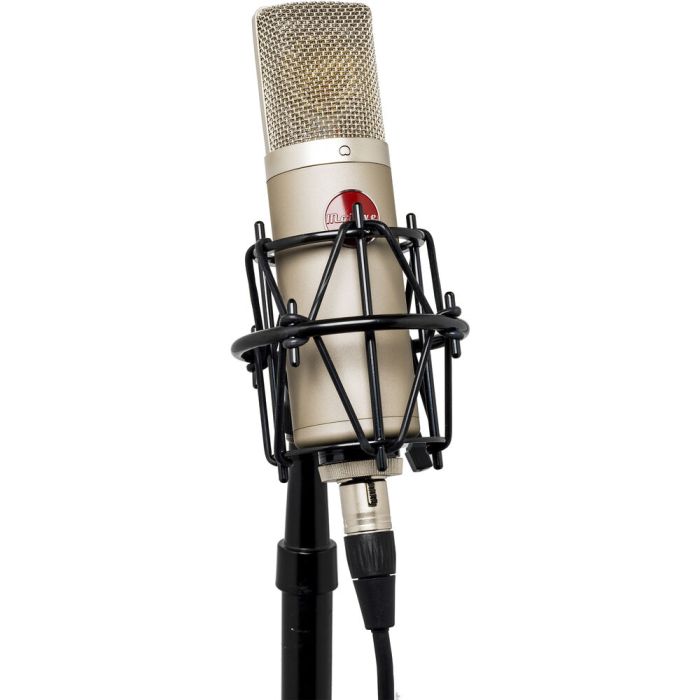

Mojave Audio MA-200 Large Diaphragm Tube Condenser Microphone

The Mojave MA-200 is a large diaphragm, vacuum tube condenser microphone with a fixed cardioid pattern. Utilizing hand-selected 3-micron capsules, high-quality Jensen audio transformers and military-grade JAN 5840 vacuum tubes, the MA-200 condenser Mic performs at a level reminiscent of some of the best loved classic condenser microphones. The power supply for the MA-200 condenser mic can be set for 115V and 230V, 50 or 60 Hz, through an internal switch (100V is also available).

Born to a lineage of fine microphone designs by David Royer, one of an elite group of microphone designers who know that music and sound are inseparable from electronic design, the MA-200 gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones. Each Mojave MA-200 microphone, power supply and cable set is burned in for 24 hours, carefully tested and evaluated, then packaged in its protective case-within-a-case.

Recommended applications:
Use anywhere you would use an expensive, large diaphragm tube microphone:
Vocals
Broadcast
Acoustic Instruments
Piano
Drum Overheads, Drum Rooms
Orchestral Recording
Choral Recording
Voice-overs

TECHNICAL DATA

• TRANSDUCER TYPE: Externally excited capacitor type
• DIAPHRAGM: 1-inch diameter, gold sputtered
• DIAPHRAGM THICKNESS : 3-microns
• POLAR RESPONSE: Cardioid
• FREQUENCY RESPONSE: 20 Hz - 20 kHz, +/-3dB
• SENSITIVITY: -37dB re 1V/pa
• MAXIMUM SPL: 120dB
• DISTORTION: head amp only, <1% @117dB SPL, <3% @ 125dB SPL
• SELF NOISE: 14db nominal, not to exceed 16db (A Weighted)
• IMPEDANCE: 200 ohms, balanced using an output transformer
• VACUUM TUBE: 5840 - pentode tube wired for triode operation
• POWER REQUIREMENTS: 100-120VAC; 220-240VAC, 50 or 60 Hz. Power consumption approx. 10 watts.
• DIMENSIONS AND WEIGHT: Carrying case with microphone, power supply, shock mount and cables: 13 lbs.Microphone: 7 5/8" X 2", 1 lb.
• POLAR PATTERN

• FREQUENCY RESPONSE
