Organic sound with 4-band parametric control, unique adjustable shelves, and all-tube make-up gain. The professional's choice for mixing and mastering.

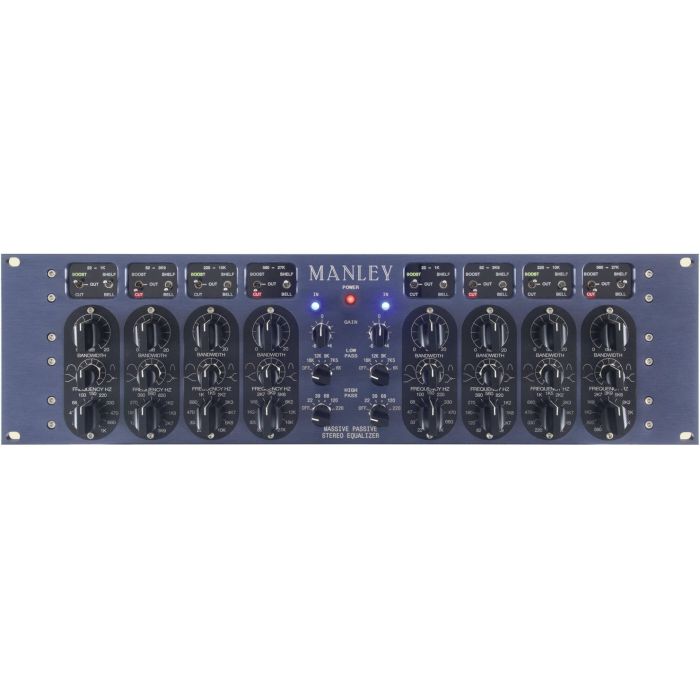

Buy The Manley Labs Massive Passive: The Art of Analog EQ, Perfected.
Experience the legendary tone that has defined the sound of countless classic records. The Massive Passive isn't just an equalizer; it's a meticulously crafted instrument for the most demanding sonic sculptors. By resurrecting and refining the coveted parallel passive topology of vintage EQs, it delivers a uniquely natural, organic, and musical character that modern processors strive to emulate.
Unparalleled Control & Musical Workflow
Dual-Channel, 4-Band Parametric Power: Each channel provides four supremely flexible bands of Pultec-style EQ with fixed frequency selections, variable bandwidth, and up to 20 dB of boost or cut.
Revolutionary Parallel Design: Unlike conventional "series" EQs that can stack gain excessively, our parallel topology allows for massive tonal shaping without overdriving the circuit. Boosting all four bands fully results in a musical +20 dB, not an overwhelming +80 dB.
Twice the Resolution: This intelligent design eliminates the guesswork of a center detent, giving you twice the control resolution and guaranteeing a truly flat response when set to neutral.
Signature Features for Creative Sound Sculpting
Bell & Shelf in Every Band: Each of the four bands can be switched between bell and shelf modes. The two left bands feature low-shelf capabilities, while the two right bands offer high-shelf.
The "Constant Bandwidth" Secret Weapon: This unique control redefines flexibility. In bell mode, it acts as a standard Q control. In shelf mode, it performs magic-gradually introducing a musical, bell-shaped dip as you increase the slope, creating shelf curves impossible to find on any other analog EQ.
Dedicated 5-Band High & Low Pass Filters: Independently selectable filters with optimized slopes for each frequency range, passively inserted between the boost and cut stages for pristine signal integrity.
Built Without Compromise
The Massive Passive is a testament to American craftsmanship and premium components.
Premium Components: Hand-wound inductors, film capacitors, and metal film resistors ensure the highest sonic purity.
All-Tube Make-Up Gain: Vacuum tube drivers recover your signal with warmth, depth, and harmonic richness.
Robust Construction: Housed in a 3U steel chassis with a CNC-machined 1/4" faceplate and laser-engraved panels.
Intelligent Operation: Features an auto-mute warm-up delay, individual band bypass, and a gain trim to perfectly match levels between the lush "EQ In" and transparent "Bypass" modes.
Front Panel Overview Per Channel:
EQ In Button: Engages the EQ and tube section. In bypass, the pure line amp and output transformer remain active.
Gain Trim (-6 to +4 dB): Perfectly level-match the EQ's color with the bypass signal.
Low Pass Filter (6-Way Switch): Select Off or one of 5 filter frequencies.
High Pass Filter (6-Way Switch): Select Off or one of 5 filter frequencies.
4-Band EQ Section (Per Band):
Bell/Shelf Toggle: Switches the EQ mode for creative shaping.
Boost/Out/Cut Toggle: Selects boost, cut, or bypasses the individual band (Out).
Gain Knob (0-20 dB): Sets the precise amount of cut or boost.
Bandwidth Knob: Adjusts the width of the bell curve or the unique shelf shape.
Frequency Switch (11-Position): Selects the fixed center frequency from 44 total choices across the unit.
