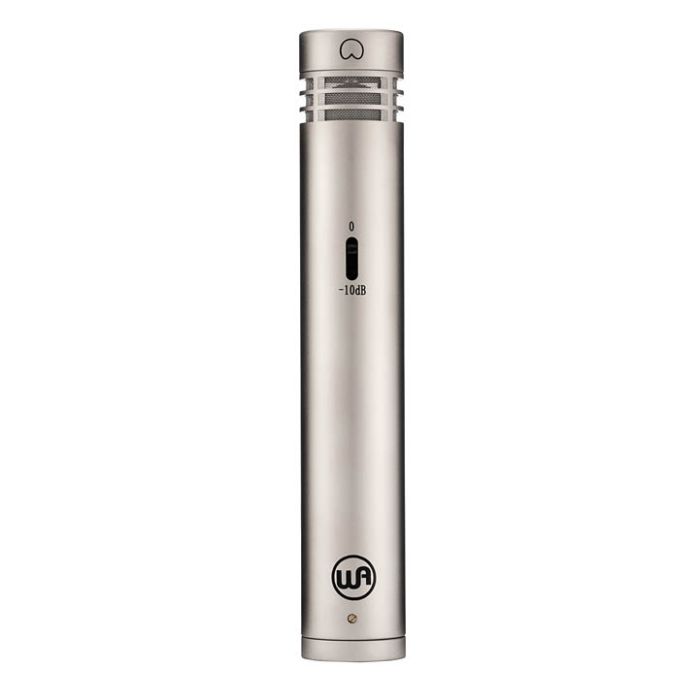

Warm Audio WA-84 Small-Diaphragm Condenser Microphone Nickle Single

$399.00
In stock
SKU
WA-84-N
The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.
  • Manufacturer: Warm Audio

Technical Specifications

  • UTILIZES A CINEMAG USA TRANSFORMER
  • DIRECTIONAL PATTERN: CARDIOID
  • FULLY DISCRETE VINTAGE-STYLE SIGNAL PATH
  • VINTAGE CAPSULE REPRODUCTION
  • PACKAGE INCLUDES: MICROPHONE, CARDIOID CAPSULE, SHOCK-MOUNT, MIC CLIP, WINDSCREEN AND CARRYING CASE
  • 48V PHANTOM POWERED
  • FREQUENCY RANGE: 20HZ - 20KHZ
  • SENSITIVITY: -39DB OR 11MV/PA @ 1KHZ
  • OUTPUT IMPEDANCE: 200Ω
  • RATED LOAD IMPEDANCE: ≥1KΩ
  • PAD: 0DB OR -10DB
  • MAXIMUM SPL: 123/133DB @ 1KHZ, 0.5% THD, 0/-10DB
  • S/N RATIO: 78DBA (IEC651)
  • EQUIVALENT NOISE: 16DBA (IEC651)
  • DYNAMIC RANGE: 107DBA (IEC651)
  • CONNECTOR: 3-PIN GOLD-PLATED XLR
  • WEIGHT: 122G EACH
  • FINISH: BLACK & NICKEL
