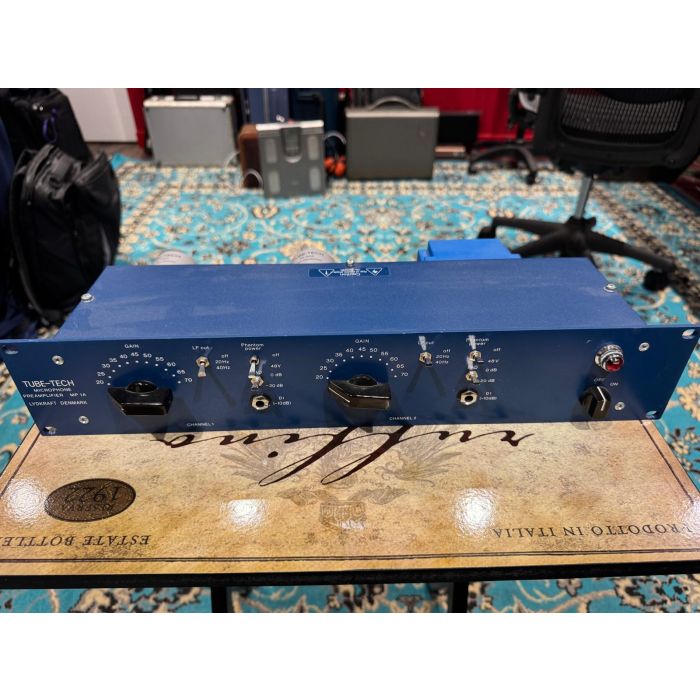

Tube-Tech MP-1A Used Dual Mic Pre In Excellent Condition (Luigi)

The Tube-Tech MP 1A is a dual-channel unit that functions as both a microphone preamplifier and a direct instrument amplifier. It features fully floating, balanced mic inputs and outputs, with switchable +48V phantom power and a -20 dB pad. Microphone gain is adjustable in 5 dB steps, ranging from +20 dB to +70 dB.

The unbalanced instrument inputs offer a gain range of +10 dB to +60 dB. All amplification stages are tube-based, with DC-powered heaters to eliminate hum. Except for the mains transformer, all transformers are shielded in MU-metal enclosures, and both input and output transformers include a static screen between the primary and secondary windings.

FEATURES:

• Tube based push-pull output amplifier
• Gain from +20 dB to +70 dB in 5 dB increments
• Pad in front of input transformer (-20 dB)
• Built-in +48 V phantom power
• Microphone input impedance: 1.2 kohm
• CMRR >60 dB @10 kHz
• Direct instrument jack socket input for various instruments
• DI input impedance: >1 Mohm
• Frequency response: 5 Hz to 60 kHz (@-3 dB)
• Typical noise figure: 5 dB @200 ohms
