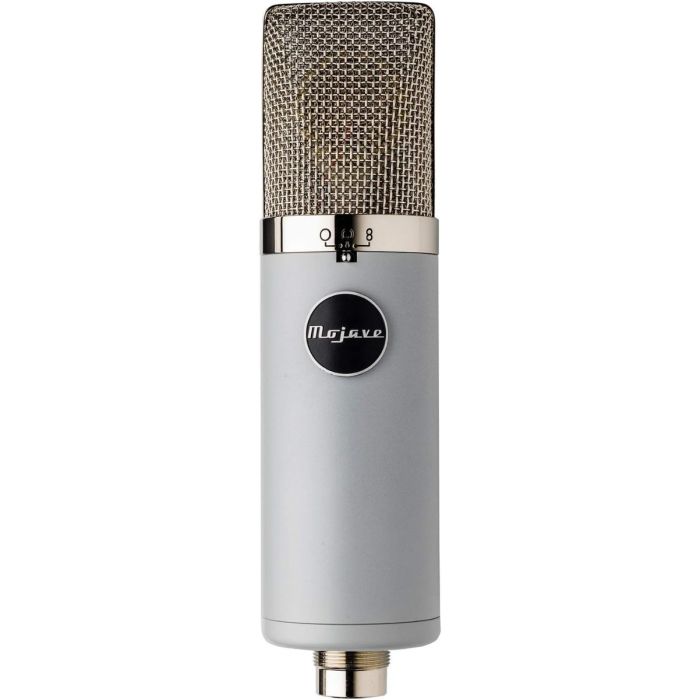

Mojave MA-301 fet Condenser Microphone

The MA-301fet is a multi-pattern large diaphragm, solid-state condenser microphone. Based upon the popular MA-201fet designed by David Royer, the MA-301fet adds a 3-posistion pickup pattern selector, a15dB pad and a switchable bass roll-off.

Utilizing a 3-micron gold-sputtered capsule, high-quality Jensen audio?transformer, military-grade FET and custom designed low-noise resistors, the MA-301fet performs at a level reminiscent of some of the best?loved classic condenser microphones. Each MA-301fet microphone is?carefully tested and evaluated, then packaged in its protective case?with a professional grade shockmount.

Features:

• Multi-pattern: Cardioid, Omnidiectional, Figure-eight (Bi-directional)

• Switchable 15dB pad

• Switchable Bass Roll-off

• Hand-selected 3-micron 1" capsule

• Jensen audio transformer

• Military-grade FET

• Custom designed low-noise resistors

• Ultra clean signal path

Recommended Applications:

• Vocals

• Voice Over and Broadcast

• High SPL sources, such as Kick Drums and Bass Guitar Amps

• Electric Guitar

• Piano

• Drum Overheads, Drum Rooms

?TECHNICAL DATA:

• TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor - double diaphragm.?DIAPHRAGM: 1-inch diameter, gold sputtered?
• DIAPHRAGM THICKNESS: 3 microns?
• POLAR PATTERN: 3 patterns; omni, cardioid and figure-8
• ?FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at "flat" setting of bass cut ?switch. Bass cut switch provides 6 dB per octave attenuation below ?100 Hertz in "cut" setting
• ?SENSITIVITY: -40.5 dB, re. 1V/pa?
• MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.
• ?DISTORTION: < 1% @ 120 dB SPL , < 3% @ 134 dB SPL with pad off?< 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on
• ?SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)
• ?PAD: 15 dB?BASS CUT: 6 dB per octave below 100 hertz.
• ?IMPEDANCE: 550 ohms, transformer balanced (Jensen)?
• POWERING: 48VDC phantom power; current 1.2 mA
• ?DIMENSIONS AND WEIGHT: ?Carrying case with microphone, shock mount: 10" x 9" x 4.5", 4 lbs. ?Microphone: 7 5/8" X 2" (194mm x 51mm), 1 lb. (0.45Kg)
