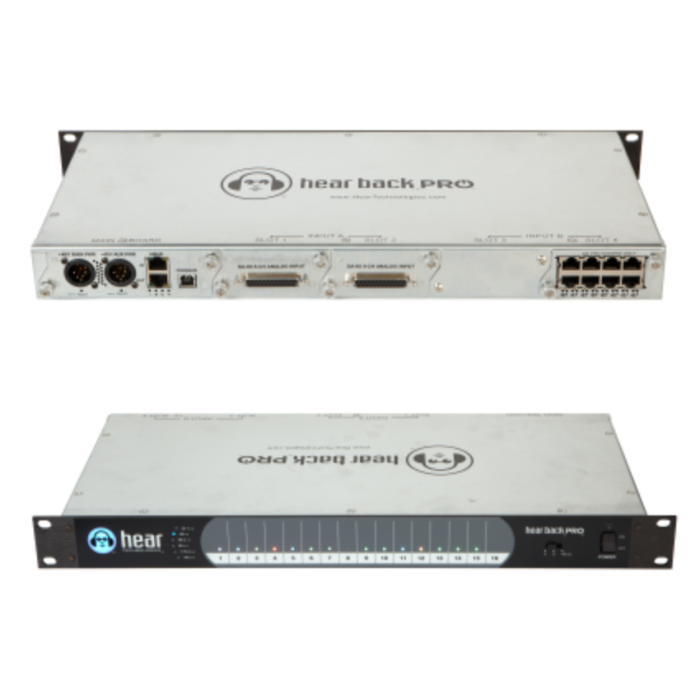

Hear Technologies PRO HUB Main Frame

Hear Technologies PRO HUB Main Frame

Hear Back PRO HUB Main Frame

Features:

• FIRMWARE V6 or later:
• Allows 32 channel digital input cards (e.g. Dante, Waves, MADI)
• Up to 32 input channels per Hub
• Multiple Hubs daisy-chain for up to 128 input channels
• Mix and match input types (ex. Dante and Analog)

FIRMWARE V1 and V2:

• Three switch selectable 16-channel input sources:
• Input A (Slots 1 & 2)
• Input B (Slots 3 & 4)
• HBus
• Six user-selectable sample rates indicated by LEDs: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz
• Note: Sample rates vary with interface cards:
• Analog, Dante and AES/EBU - goes up to 192kHz
• ADAT - goes up to 48kHz (SMUX not supported; ex. ADAT will down sample from 192kHz to 48kHz)
• Waves - goes up to 96kHz
• Less than .25 milliseconds total system delay (latency) from analog input to output
• 16 RGB LEDs intuitively display signal/peak levels for channel metering
• Standard CAT5e/6 cabling delivers power and signals to Mixers
• Daisy-chain via HBus for very large systems
• 1 RU chassis
• Modular I/O card-slot configurable mainframe
• Gigabit Ethernet network fabric
• 48V Power Over Ethernet supply
• Daisy-chain functionality for system expansion
• Multicolor, 4-level metering for level monitoring
