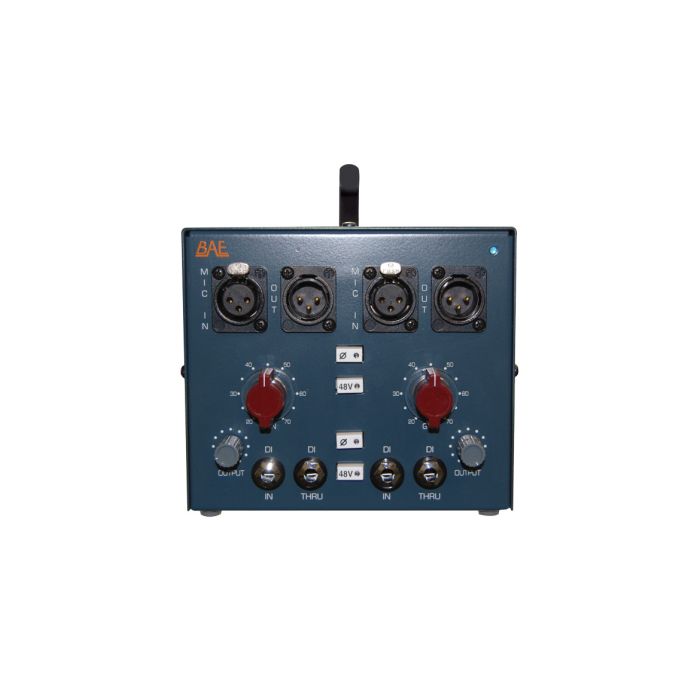

BAE AUDIO Stereo 1073DMP

BAE AUDIO Stereo 1073DMP

The First Portable Dual 1073 Mic Pre

The 1073 Dual DMP features the same pre-amps and the same Carnhill (St Ives) transformers as the 1073 and 1084.

All units come standard with the 'Bootsy Collins' mod (channel one ONLY) which consists of an OEP Carnhill DI transformer to create the first 1073 direct box. The Dual DMP features include two DI thrus, phase reverse, 48V for phantom power, a built in PSU for extra portability and the same hand-wired modular design that BAE is known for.

DMP Users Include:

Slash, Vance Powell, Chris "Frenchie' Smith, Timo Kielnecker (G Love), Chris Chaney (Alanis Morrisette Janes Addiction), Warren Haynes, Bootsy Collins, Snoop Dogg, Matt Sorum, Huw Williams, Dave Weiner, Derek Trucks, Oteal Burbridge, Jackie Greene, The Chris Robinson Brotherhood, Charles Twilling, Bobby Vega, Rafael Moreira

Features

• Built in PSU for extra portability.
• DI in and DI through.
• 48v for phantom power.
• Solid steel chassis.
• Same hand-wired modular design that BAE is known for.

1073DMP Specifications

Frequency Response
10Hz to -3dB at 55kHz

Mic Pre Input Impedance
1200 ohms

DI Input Impedance
150k ohms

Output Impedance
65 ohms

Common Mode Rejection Ratio
100dB min @ 60Hz

Maximum Output Level
+27.4 dBu @ 600 ohm

Power Requirements
115/230 VAC, 28W

Gain Voltage
0 to 33.4 Volts

Gain dB
0 to 71 dB

Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth
