500 Series Racks Features
500 Series Racks are available as 11 space Rackmounts, 6 space Rackmounts and 6 space Desktop Chassis.
- Strong steel chassis - not aluminium
- Shielded wires on individual connectors for serviceability- no PCBs
- XLR inputs and outputs
- Remote power supply keeps power transformer interference away from modules
*If you purchased a BAE Chassis after June 1st, 2012 you can convert it into a rack-mount version by buying the rack ears separately ($175 per pair).
If you purchased a BAE Chassis prior to June 1st, 2012 then your unit will not be compatible.
500 Series Racks Specifications

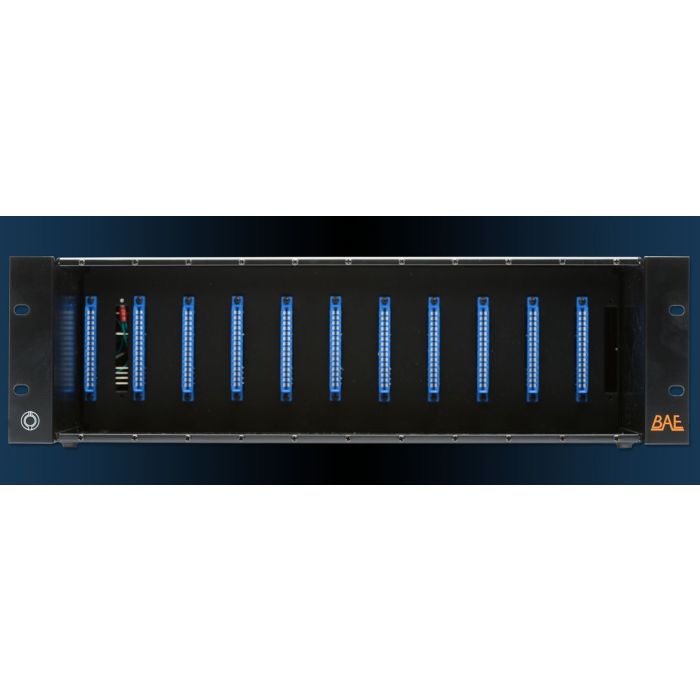

Large Bi Polar, 11 Space Rack
+/- 16V 2.1Amp
Power Requirements
115/230 VAC, 36W
Weight (Empty)
8 LBS / 3.63 KG
Dimensions in Inches
9.25W x 5.25L x 10D
19W x 5.25L x 10D
