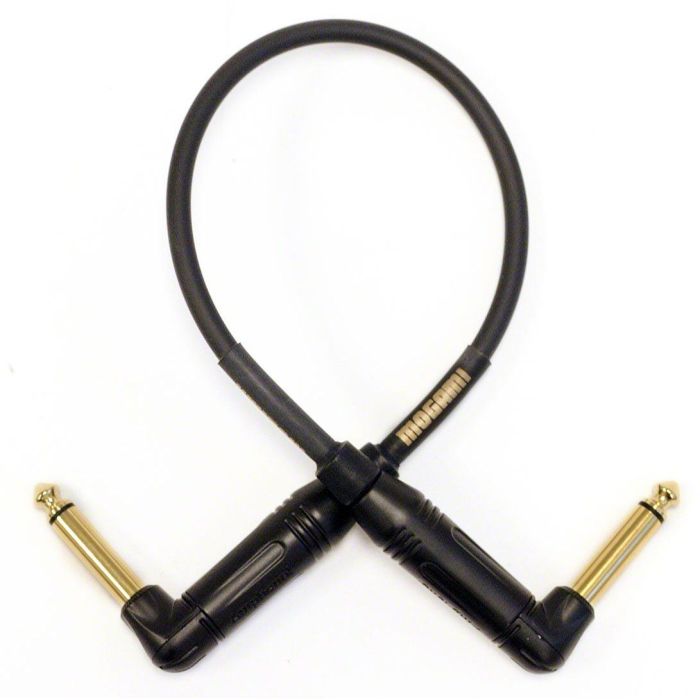

A superb patching cable is essential for amplified guitars where unwanted noise can be a critical problem. Mogami Gold Instrument RR offers outstanding performance, with 90-degree connections on both ends and when linking effects pedals that are close together.
Gold Instrument
OFC (oxygen-free copper) core for the highest level of transparency
Carbon impregnated PVC eliminates handling noise
Ultra High Density spiral shield
Conductive polymer sub-shield
Lifetime warranty
Applicable Equipment
W2524
Most musical instrument sound pick-ups, for example those in electric guitars, are comprised of high impedance circuits driven mainly by voltage, with very little electrical current flow. That is why handling noise (microphonics) can be a problem for guitar cables. Microphonic noise is caused by the minute voltage generated when a cable is flexed, stepped on, etc. Guitar cables must be designed to prevent this, so a conductive PVC layer is placed under the shield conductor to drain away this voltage. Note: This conductive layer must be stripped back when wiring, or a partial short will result.
SPECIFICATIONS
Configuration
Part No.
W2524
Conductor
Details
50/0.12A
Size(mm²)
0.565mm² (#20AWG)
Insulation
Ov. Dia.(mm)
2.7Ø (0.106")
Material
PE
Color
Clear
Sub-Shield
Ov. Dia.(mm)
3.3Ø (0.130")
Material
Conductive PVC (Carbon PVC)
Color
Black
Main-Shield
Served-Shield
Approx. 55/0.18A
Jacket
Ov. Dia.(mm)
6.0Ø (0.236")
Material
PVC
Color
Black
Roll Sizes
100m (328Ft) / 200m (656Ft)
Weight per 100m (328Ft) roll
5.1Kg
ELECTRICAL & MECHANICAL CHARACTERISTICS
Part No.
W2524
DC Resistance at 20°C
Inner Conductor
0.033Ω/m(0.010Ω/Ft)
Shield Conductor
0.014Ω/m(0.0043Ω/Ft)
Capacitance at 1kHz, 20°C
130pF/m (39.7pF/Ft)
Inductance
0.2µH/m (0.061µH/Ft)
Electrostatic Noize*
0.15mV Max.
Electromagnetic Noise At 10kHz*
0.07mV Max.
Microphonics*
0.3mV Max
Voltage Breakdown
Must withstand at DC 500V/15sec.
Insulation Resistance
100000 MΩ × m Min. at DC 500V , 20°C
Flex Life
15,000 cyles
Tensile Strength (26°C, 65%RH)
578 N
Emigration
Non-emigrant to ABS resin
Applicable Temperature
-20°C‾ +60°C(-4°F‾ +140°F)
*Using standard testing methods of Mogami Wire & Cable Corp.
