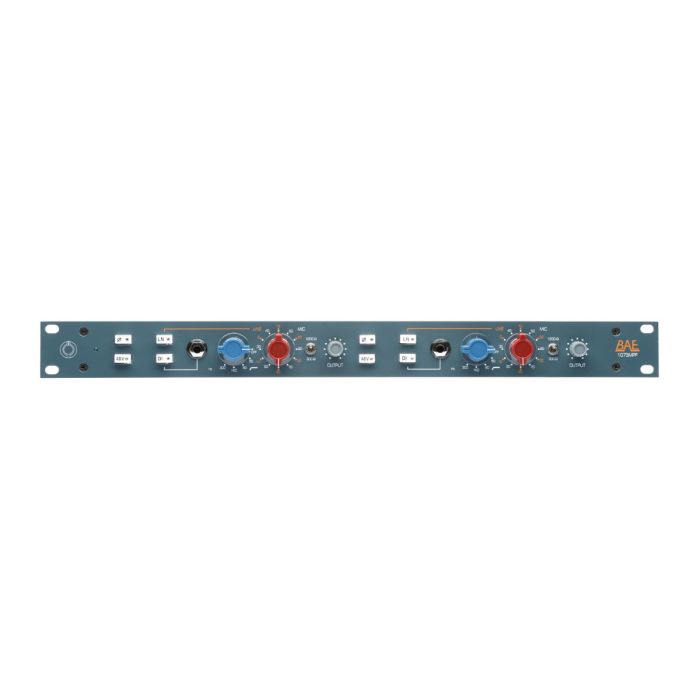

BAE AUDIO 1073MPF dual channel w/filter & power supply

BAE AUDIO 1073MPF dual channel w/filter & power supply

1073MPF Features

This is the high-pass filter version of the 1073MP. The 1073MPF is the mic pre-amp version of the 1073 equaliser, sharing the the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs and maintained focused mids.

A transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones.

There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.

As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.

• All Class A, transformer-coupled design in a 19" 1U chassis.
• Inductor based high pass filter
• Line level XLR inputs for extra versatility as a line preamp.
• High impedance DI for guitar and synth.
• The same Class A components as the 1073 and 1084.
• Illuminated phase reverse and phantom power pushbuttons.
• Input impedance selector switch between 1200 and 300 ohms.
• Same modular design and hand-wiring BAE is known for.
• Regulated linear power supply will run up to four channels.

1073MPF Specifications

Frequency Response
10Hz to -3dB at 55kHz

High Pass Filter
50Hz, 80Hz, 160Hz, 300Hz

Mic Input Impedance
~1200/300 ohms

Line Input Impedance
10k ohms

DI Input Impedance
~150k ohms

Output Impedance
65 ohms

Common Mode Rejection Ratio
100dB min @ 60Hz

Maximum Output Level
+27.4 dBu @ 600 ohm

Power Requirements
115/230 VAC, 30W

Gain dB
0 to 71 dB

Equivalent Input Noise
-110 dBu; Unweighted 300kHz Bandwidth

Dimensions (Inches)
19W x 1.75L x 9D
