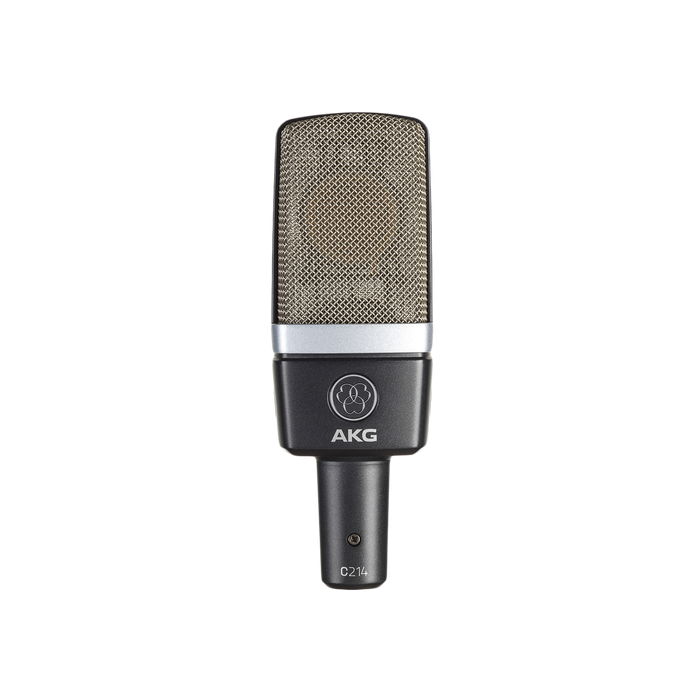

AKG C214 Large Diaphragm Condenser Microphone, Single Capsule, Cardioid

AKG's industry-leading C 414 microphones are already a permanent fixture in the world's biggest recording studios and a highly respected work horse for independent artists, broadcasting, and on-stage miking as well.

The new C 214 is designed as a cost-effective alternative to the high-end, industry-leading C 414 family. It captures sound combining one side of the legendary C 414 dual-capsule system and AKG’s patented Back-Plate Technology which results in an outstanding performance close to the famous C 414 B-XLS.

Like the C 414 models, the C 214 is capable of handling the rigors of high-pressure sound such as amplified guitars, with a sensitivity perfect for voice and orchestral instruments as well. Additionally, the microphone offers a 20 dB Attenuation pad, 13 dB noise floor, and a low cut switch-all in an elegant but rugged package. Besides, the C 214 will also work on low phantom power voltages from 12 up to 48 volts.

Additional features include an integrated suspension, a double mesh grill high RF immunity without affecting acoustics. The circuitry in the C 214 provides maximum SPL capability with minimum noise and the gold-plated XLR-type output connector offers loss-free signals.

The C 214 comes complete with carrying case, windscreen, and spider suspension mount included.

Features

• AKG's legendary edge-terminated, 1" large-diaphragm up-front, detailed, "voice-friendly" sound
• Outstanding 143 dB dynamic range for uncompressed, life-like transients (the widest dynamic range in its class)
• 156 dB max. SPL capability - perfect for use on guitar amps, drum overheads, brass instruments, etc. for recording or live use
• Elastically-suspended capsule that greatly minimizes mechanical noise and vibration that could color the sound
• Switchable bass roll-off filter helps minimize wind and LF noise
• -20dB attenuation switch for micing high-SPL sources
• Rugged, scratch-resistant finish - tough, roadworthy construction
• C 214 kit includes spider-type shock mount, windscreen and metal carrying case
• Designed, engineered and built in Vienna, Austria - backed by a 3-yearparts and labor warranty from AKG

Specifications

• Polar Pattern: Cardioid
• Frequency Range: 20 to 20,000 Hz
• Sensitivity: 20mV/Pa (-34 dBV)
• Max. SPL: 136/156 dB SPL (0/-20dB) (for 0.5% THD)
• Equivalent Noise Level: 13 dB-A to IEC 60268-4 (A-weighted)
• Signal/Noise Ratio (A-weighted): 81 dB
• Preattenuation Pad: 0/-20dB (switchable)
• Bass Cut Filter Slope: 160 Hz, 6 dB/Octave, switchable
• Impedance: <=200 ohms
• Recommended Load Impedance: >=1000 ohms
• Supply Voltage: 12 to 52 V phantom power to IEC 61938
• Current Consumption: <2 mA
• Dynamic Range: 123/143 dB (0/-20dB) (A-weighted)
• Connector: IEC standard 3-pin XLR
• Finish: Matte grayish blue
• Dimensions: 6.3" x 2.2"
• Net Weight: 0.62 lbs
• Shipping Weight: 3.22 lbs
