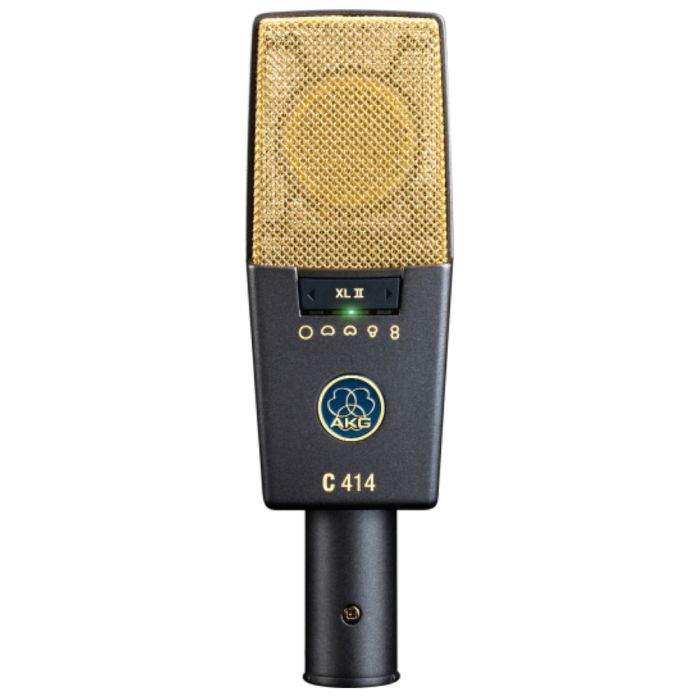

AKG C414/XLII 9 Pattern Large Diaphragm Studio Condenser Mic

AKG C414/XLII 9 Pattern Large Diaphragm Studio Condenser Mic

The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live-sound applications and permanent installations, all controls can easily be disabled for trouble-free use.

The C414 XLII version differs from the C414 XLS version in one major respect - the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.

TECHNICAL SPECIFICATION

General	Audio frequency bandwidth 20 to 20000 Hz Equivalent noise level 6 dB-A Sensitivity 23 mV/Pa Signal to Noise 88 dB-A Preattenuation Pad -6 -12 -18 dB Bass cut filter 160 80 40 Hz Electrical impedance 200 Ohms Recommended load impedance 2200 Ohms
Polar Patterns	Omnidirectional Wide Cardioid Cardioid Hypercardioid Figure of eight
Powering Interface	Voltage 44 to 52 V Current 4.5 mA
Audio Output	Type Balanced XLR Gender Male Contacts 3-pin
Design	Finish dark gray/gold
Dimensions / Weight	Length 38 mm Width 50 mm Height 160 mm Net Weight 300 g
