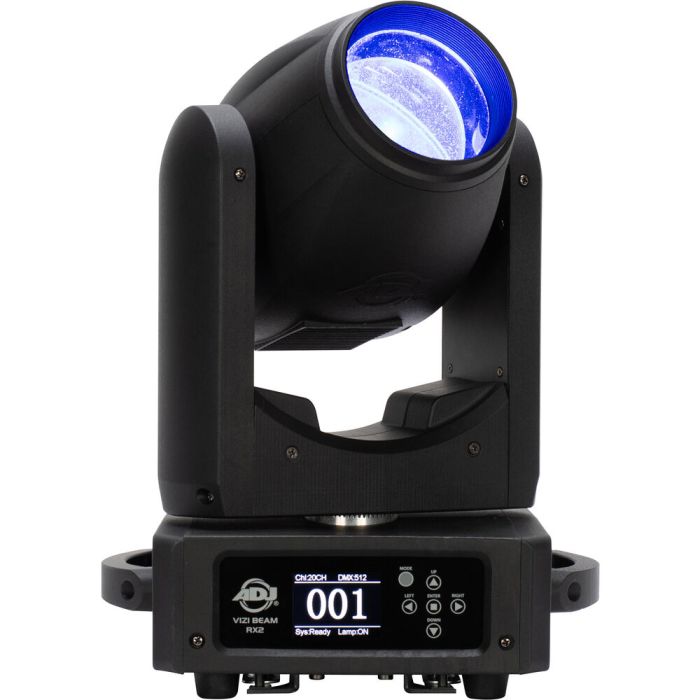

ADJ Vizi Beam RX2 moving head beam fixture

ADJ Vizi Beam RX2 moving head beam fixture

Introducing the ADJ Lighting Vizi Beam RX2

Elevate your lighting setup with the ADJ Lighting Vizi Beam RX2-a compact yet powerful moving head beam fixture designed for the modern lighting professional. Equipped with a 100W Osram Sirius HRI discharge lamp, this fixture delivers an exceptionally sharp 2-degree beam, ensuring precision and impact. The Vizi Beam RX2 also features dual prism effects and an array of high-performance capabilities, making it the perfect choice for creating dynamic and captivating light displays

Specifications:

• Light Source:OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
• Color temperature: 9000K (+/- 300K)
• On-Board Wireless DMX
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms:
• 0-100% smooth dimming
• Various strobe speeds
• OTA, wireless, firmware updates
• Fan cooled

Color Wheel:

• 14 dichroic colors + white (Includes CTO (3200K), CTB (4500K & 9000K) & UV filters)
• Indexable color wheel for split colors

GOBO Wheel:

• 15 static GOBOs + open (3 GOBOs are beam reducers)
• GOBO Shake Effect

Prism Wheels:

• 2 Rotating prisms
• 16- facet circular and 4-facet linear prisms

Control:

• Protocols: DMX512 & RDM
• Control Mode: DMX512 & Manual (On-board Controls)
• 2 DMX Channel Modes: 12/16 Channels
• Aria X2 Wireless Management / DMX System
• Color LCD display with 4-button function menu
• 0-100% smooth dimming
• Various strobe speeds
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 540 degrees (plus 16-bit fine pan)
• Tilt: 270 degrees (plus 16-bit fine tilt)
• 3 Phase, High Speed, Pan/Tilt motors

Connections:

• DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
• Power Connections: Outdoor locking In/Out connections to daisy chain power

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz
• Max power consumption: 168W (@120V), 157W (@230V)
• Fuze Protected: 3.15A

Dimensions & Weight:

• Dimension: 9" (L) x 12" (W) x 16.3" (H) (230 x 304 x 416mm)
• Weight: 16.5 lbs. / 7.5 kg.

Approvals / Ratings

• CE
• cETLus (Control # 5028947)
• FCC

What's Included:

• 2x Omega Brackets (107 Type)
• 2M, outdoor locking 14AWG power cord
