ADJ AVX7X4

ADJ AVX7X4

Specifications

SPECIFICATIONS:

- Pixel Pitch: 6.0mm (0.25")

- LED Configuration: 3-in-1 SMD2121 LED

- Pixel Density: 96x96; 27,777 per square meter

- Size: 576 x 576 x 75mm / 22.75" x 22.75" x 3"

- Module Quantity: 4

- Weight: 23lbs. / 8.15Kg

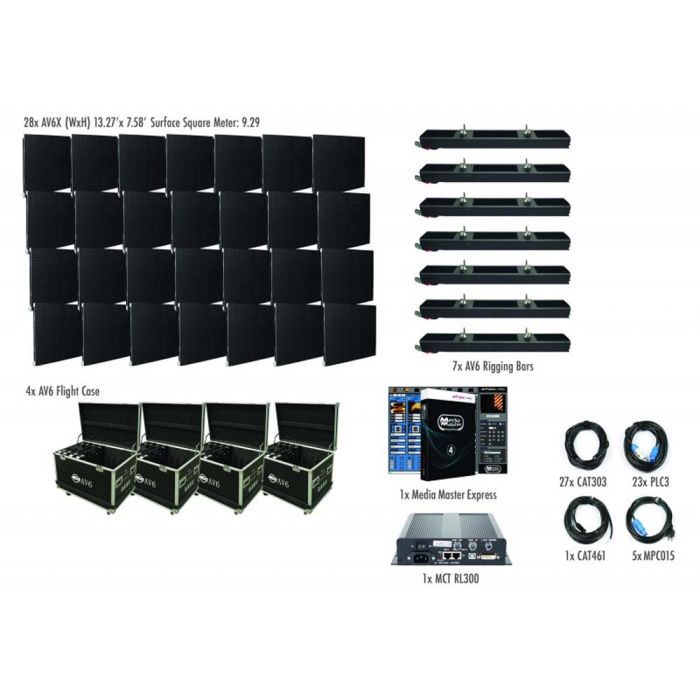

- 28x AV6 (WxH) 13.27' x 7.58'
- Surface Square Meter: 9.29

MECHANICAL RATINGS:

- Surface Flatness: Gaps<0.5mm

OPITCAL RATINGS:

- Brightness: 1200 NITS

- View Angle: Horizontal 140 deg/Vertical 140 deg

- Distance: 20 ft. (6m)

- Gray Scale / Display Color: 14Bit

- Brightness Adjustment: 0~100% 100 Levels

- Processing: 14-bit

POWER SUPPLY:

- Operation Power: 100~240V 50-60Hz

- Max. Power Consumption: 300W/per panel

- Ave. Power Consumption: 120W/per panel

- Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

CONTROL SYSTEM:

- Control Mode: Nova Star Synchronous System with Control via DVI

- Frame Update Frequency: 50-60Hz

- Scan Mode: 1/12 Duty

- Refresh Rate: 1200Hz

- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

- Control Distance: Ethernet Cable <100m or Fiber Optic>120m

- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

- Brightness Correction: Pixel, Module, Cabinet

ENVIRONMENTAL:

- Operating Temp / Humidity: Fahrenheit: -4 deg + 104 deg / Celsius: -20 deg + 40 deg/

10-90% (No Condensation)

- Operating Life / MTBF: 100,000 Hours / 5,000 Hours

- Protection Level: IP20 (Front and Back)

- Out of Control Rate: <0.02%

- Listings: CE, FCC Class A
