ADJ PAR Z100 5K2 stage par can with the contemporary advantages of LED technologyy

ADJ PAR Z100 5K2 stage par can with the contemporary advantages of LED technologyy

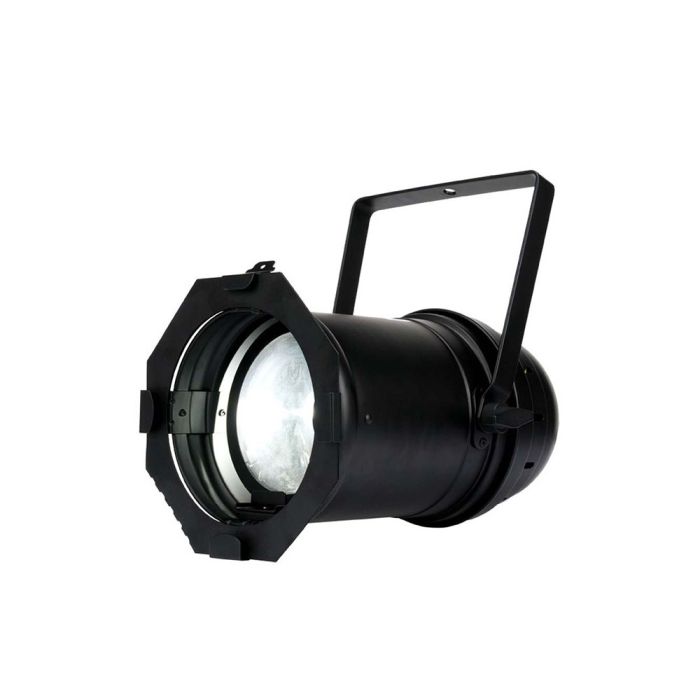

The Par Z100 5K2 combines the aesthetic appeal of a traditional stage par can with the contemporary advantages of LED technology. It runs on a 100-Watt, 5700K Cool White C. O. B. LED engine boasting a CRI exceeding 90. With 5 manually adjustable zoom beam angles, along with DMX In/Out and locking power In/Out, the fixture facilitates the seamless connection of multiple units for permanent or temporary use.

The Par Z100 5K2 allows lighting and stage designers the look of the traditional stage par with the technological conveniences of modern day lighting. The advantages include low power draw, fixture and performers won't get hot on stage, DMX control of dimming and strobe. There are no dimmer controllers need. The fixture comes with a gel frame in which diffusion filters may be inserted to further change the beam angle.

Specifications

Optical:
- 100 Watt COB Cool White LED (5700K)
- Life expectancy: rated at 50,000 hrs.
- LUX: 7874 (9 ); 4900 (15 ); 2467 (20 ); 1397 (25 ); 896 (30 )
- CRI: 90
- Beam angle: 9, 15, 20, 25 0r 30-degree (manual adjustment)
- PWM frequency:1200Hz

Connection:
- DMX:5-pin DMX In/Out
- powerCON In/Out to power battery or daisy chain fixture

Control:
- Control protocol: DMX-512
- 2 DMX Channels

Features:

- 4-button DMX menu display on rear panel

- Adjustable latch to manually change beam angle

- Includes gel frame for diffusion filters (Diffusion filter sold separately)

- Strobe effect (25Hz max)

- Flicker Free Operation

- Electronic Dimming: 0 - 100% with 5 dimming curves

- Run all night - No duty cycle

Electrical:

- Power Draw Total (All LED's @ Full On): 115W, 0.964A @ 120V/60Hz, 112W, 0.5A @ 220V/50Hz
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Daisy chain: 15 fixtures (120V); 25 fixtures (230V)

Dimensions / Weight:

- Dimensions (LxWxH): 19.5" x 10.75" x 10.75" / 491 x 272 x 273mm
- Weight: 7.5 lbs. / 3.4kg.
