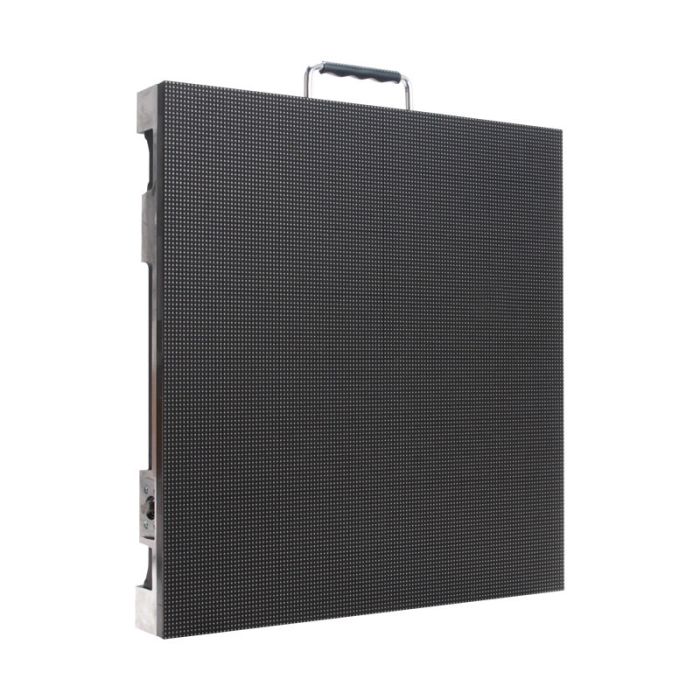

ADJ AV3 LED Video Panel Used In Excellent Condition

Used ADJ AV3 Video Panel In Excellent Condition

Buy now the ADJ AV3 is a high resolution video panel from ADJ. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED.

SPECIFICATIONS:

• Pixel Pitch: 3.91mm (0.25”)

• LED Configuration: 3-in-1 SMD2121 LED

• Pixel Density: 128x128; 65536 per square meter

• Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm

• Shipping Dimentional Weight 35 lbs

• Actual Weight: 20 lbs. / 9kg.

MECHANICAL RATINGS:

• Surface Flatness: Gaps<0.5mm

OPTICAL RATINGS:

• Brightness: 1000 NITS

• View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)

• Gray Scale / Display Color: 14-bit

• Brightness Adjustment: 0~100% 100 Levels

• Processing: 14-bit

POWER SUPPLY:

• Operation Power: 100~240V 50-60Hz

• Max. Power Consumption: 170W/per panel

• Ave. Power Consumption: 70W/per panel

• Connections Power/Data: Locking Power In/Out;

CONTROL SYSTEM:

• Control Mode: Nova Star Synchronous System with Control via DVI

• Frame Update Frequency: 50-60Hz

• Scan Mode: 1/16

• Refresh Rate: 1920Hz

• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

• Control Distance: Ethernet Cable <100m or Fiber Optic>120m

• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280

• Brightness Correction: Pixel, Module, Cabinet
• With Wired Digital Communication Network

ENVIRONMENTAL:

• Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)

• Operating Life / MTBF: 50,000 Hours / 5,000 Hours

• Protection Level: IP20 (Front and Back)

• Out of Control Rate: <0.02%

• Listings: ETL, CE, FCC Class A

OPTIONAL ACCESSORIES:

AV3FC (AV3095): Flight Case - fits 8 AV6 Video Walls

AV3RB1 (AV3070): Rigging Bar - Connect up to 15 AV3 Video Panels

AV3RSB (AV3111): Rear Support Bracket

Novastar VX4S: Video Processor

Novastar MCTRL-300: Video Processor

Media Master Express 4: Video Software

GrandVJ 2.0: Video Software

CABLES:

Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors)

MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors)

VX4S Processor to Cabinet (NEUTRIK Ethercon Connectors)

NOVA PRO HD Processor to Cabinet (NEUTRIK Ethercon Connectors)

NEUTRIK powerCON Link Cables

NEUTRIK powerCON Main Power Cables

ETL Approved
