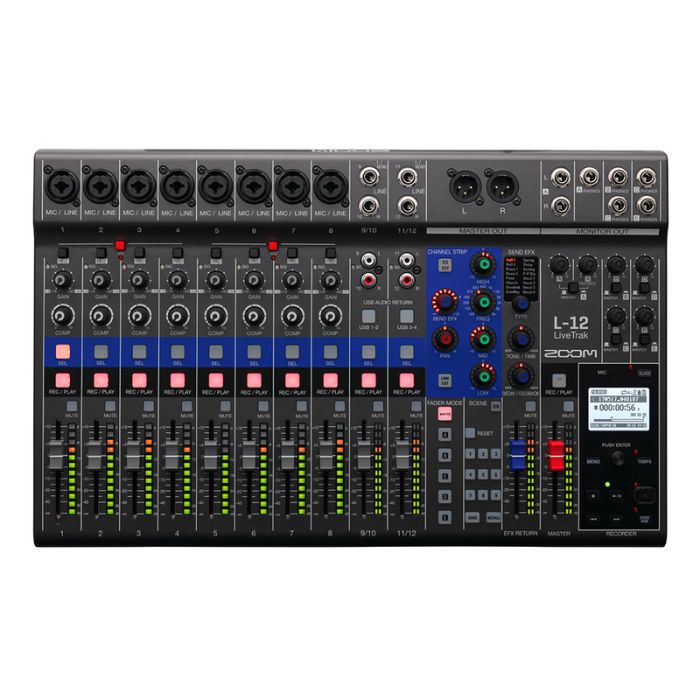

Zoom LiveTrak L-12 Digital Mixer
Video |
---|
Details
Let’s Take a Tour
The Channel Strip ( 1 )
All 12 inputs include a channel fader and mute button. The eight mono inputs also include single-knob compression and gain control. Record or playback individual channels with the "Rec/Play" button. Use the "Select" button to apply Channel Strip settings (EQ and panning controls, and "EFX Return" settings) to the selected channel.
Easy EQ Control ( 2 )
The L-12 provides a smooth 3-band mid-parametric EQ and a low cut function for each input channel.
Plenty of Inputs ( 3 )
The L-12’s combo inputs support XLR or 1/4-inch connections. Channels 1 and 2 offer Hi-Z inputs for connecting an electric guitar or bass. Channels 9/10 and 11/12 have TS line connectivity for keyboards and other audio devices, as well as RCA inputs.
Navigation and Display ( 4 )
LiveTrak’s bright, backlit LCD screen and encoder knob let you access an intuitive menu system to create new projects, recall previous projects, and customize your recorder settings.
16 Onboard Effects ( 5 )
The L-12 offers 16 built-in effects with fully adjustable parameters. Choose from delay and reverb effects, then apply them to any channel.
Custom Scene Settings ( 6 )
Save up to nine different scenes and recall your custom settings automatically. Each scene saves fader position, EQ settings, pan, mute, and more. The “Fader Mode” buttons allow you to design custom mixes for both the Master and monitor outs.
Slate Mic and Metronome ( 7 )
Use the built-in slate mic to record comments or talk-back, and program the metronome to your desired tempo.
Flexible Monitoring Options ( 8 )
Five powered headphone outputs can send individual monitor sub mixes to headphones, in-ear monitors, or powered monitor speakers. Headphone output A also features two 1/4" outputs for connection to additional monitors. The main outputs feature XLR connectors to easily connect to your PA.
USB Connectivity for Your DAW
LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.*
*Apple Lightning to USB Camera Adapter required.
- 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
- 14-track simultaneous recording, 12-track playback
- 14-in/4-out USB audio interface connectivity
- 5 powered headphone outputs, each with a customizable and saveable mix
- Add backing/click tracks from your computer to your live mix and recording
- RCA and TRS line inputs
- 48V phantom power (channels 1-4 and 5-8)
- Hi-Z connectivity (channels 1 and 2)
- 26 dB pad (channels 3-8)
- Built-in compression control (Channels 1-8)
- Digital level meters -48 dB to -0 dB
- Master mute button
- Low-cut control
- Stereo panning
- Master and Monitor Outputs A-E
- Scene saving function, up to 9 scenes saved at a time
- 16 built-in delay and reverb effects with adjustable parameters
- Built-in slate mic
- Class-compliant mode (for iOS compatibility)
- SD card input
- Built-in metronome
- Automatic recording starting/stopping capability
- Project protection
- Import/export projects with USB 2.0 host port
- Latency adjustment for A-to-D conversion
- Compatible functions for ZOOM FS01 footswitch
Here's what comes included with the L-12:
- AC adapter (AD-19)
- USB 2.0 cable
- Quick Guide
Specs
Number of Input and output Channels | |
---|---|
Inputs: |
Mono (MIC/LINE): 8 |
Outputs: |
MASTER OUT: 1 |
Inputs | |
Mono (MIC/LINE): |
Type: XLR/TRS combo jacks Input gain Input impedance Maximum input level Phantom Power |
Stereo (LINE): |
Type: TRS phone/RCA pin (unbalanced) jacks |
Outputs | |
MASTER OUT : |
Type: XLR jacks (balanced) |
MONITOR OUT A (TRS): |
Type: TRS phone jacks (balanced) |
MONITOR OUT A-E (PHONES): |
Type: Standard Stereo phone jacks |
Buses | |
MASTER: |
1 |
MONITOR: |
5 |
SEND EFX: |
1 |
Channel Strip | |
COMP: | |
LOW CUT: |
75 Hz, 12 dB/OCT |
EQ: |
HIGH: 10 kHz, ± 15 dB, shelving |
Level meters | |
Level segments: |
12 |
Send effects | |
Effects: |
16 types: |
Recorder | |
Maximum simultaneous recording tracks: |
14 at 44.1/48 kHz (12 channel + stereo mix) |
Maximum simultaneous playback tracks: |
12 |
Recording format: |
WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format |
Recording media: |
16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards |
Audio interface | |
44.1/48 kHz: |
Recording: 14 channels |
Bit depth: |
24-bit |
Interface: |
USB 2.0 |
System Requirements | |
Windows: |
OS: Windows® 7 SP1 or later / 8.1 / 10 * Operation is not guaranteed with CPUs ** Only USB host controllers with Intel Chipsets are |
Mac: |
OS: Mac® OS X 10.10 / 10.11 / 10.12 |
iPhone/iPad: |
OS: iOS 8 / 9 / 10 |
Card reader | |
Class: |
Mass storage |
USB HOST | |
Class: |
USB 2.0 High Speed |
Sampling rate | |
Sampling rate: |
44.1/48/96 kHz |
Frequency characteristics | |
44.1 kHz: |
-1.0 dB: 20 Hz - 20 kHz |
96 kHz: |
-3.0 dB: 20 Hz - 40 kHz |
Equivalent input noise | |
Actual measurements: |
-128 dB EIN (IHF-A) with +60 dB/150 Ω input |
Display: |
LCD with backlight (128x64 resolution) |
Power supply: |
ZOOM AD-19 AC adapter (DC12 V/2 A) |
Power consumption: |
17W maximum |
External dimensions: |
445 mm (W) x 282 mm (D) x 70.5 mm (H) |
Weight (main unit only): |
2.53 kg / 5.58 lbs |
