XYH-6 X/Y Capsule
A little X, a little Y, a whole lotta stereo.
The X/Y miking technique is optimal when you want to cover a wide area and still capture sound sources in the center with clarity and definition, making it great for all types of live stereo recording.

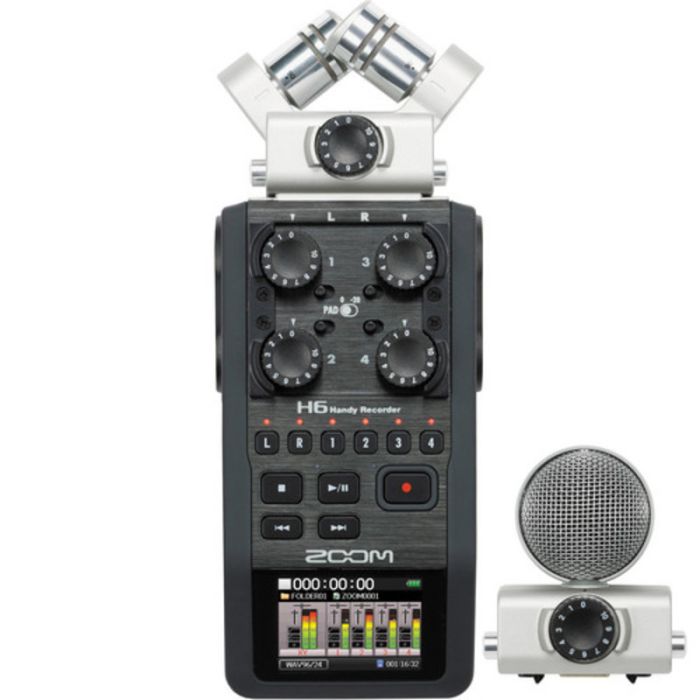

The XYH-6 X/Y capsule comes standard with the H6.
The capsule adds two matched high-quality unidirectional microphones to your H6 or H5. This kind of microphone is most sensitive to signal coming from directly in front, and less sensitive to signal coming from behind or from the sides; in technical terms, they are said to utilize a cardioid polar pattern.
Playing back stereo X/Y tracks in mono results in a fuller sound than you would get with one microphone, but if mono compatibility is critical (for example, in television production), the Mid-Side (MS) mic technique can be a better choice.
As shown in this illustration, the angle of the two mics can easily be changed from 90 degrees to 120 degrees for a wider stereo image (US Patent 8184815).
MSH-6 MS Capsule
Mid-side mic magic.
MS (“Mid-Side”) recording: an incredible technique that allows you to actually adjust the width of the stereo image after it has been recorded, making it especially useful for film, video and television projects. Sound like magic? Read on.
The MSH-6 comes standard with the H6 and can be used with the H5.
Although the MSH-6 MS capsule appears to be just one microphone, it actually contains two mic elements, positioned directly on top of one another. One of the microphones inside the MSH-6 is unidirectional (that is, it is mostly sensitive to signal coming from directly in front, and less sensitive to signal coming from behind or from the sides) while the other is bi-directional (that is, it is mostly sensitive to signals coming from directly in front and directly behind, and less sensitive to signal coming from the sides).
The basic concept behind MS recording is that the Mid microphone picks up signal coming from the center, while the Side microphone creates ambience and directionality by adding or subtracting information from either side.
The Mid-Side technique works well whenever you need a variable amount of room sound. It can also be used for studio recording, and its convenience and flexibility make it a good option for rehearsal and live concert recording as well. Another benefit is that it provides total mono compatibility, making it an excellent choice for stereo recordings that may eventually be played back in mono, such as TV broadcasts.
Inside the H6 MS capsule, the directional (“Mid”) mic faces forwards while the bi-directional (“Side”) mic is set perpendicular to it, like this:
XYH-5 X/Y Capsule
Louder. Closer. Cleaner.
X/Y stereo recording allows you to cover a wide area yet still capture a strong center image. The XYH-5 X/Y microphone capsule provided with the H5 features two matched unidirectional condenser microphones set at a 90 degree angle and housed within an advanced shockmount to minimize vibration and handling noise, making it ideal for location videography and live broadcast/podcast applications. The design of the XYH-5 also allows it to handle extremely loud sounds, making it perfect for use at live rock concerts and for electronic newsgathering. The XYH-5 can also be used with the H6.
SGH-6 Shotgun Capsule
Riding shotgun.
The SGH-6 Shotgun capsule adds a professional-quality hyperdirectional (that is, highly directional) microphone turning your H6 or H5 into the perfect audio recorder for anyone working in film, video or live theater, or for ENG (electronic news gathering) applications.
A “shotgun” is a long, cylindrical microphone which excels at picking up sounds in front of it while rejecting sounds to the sides and rear. Shotgun microphones are often used when you cannot position a microphone directly in front of a sound source. For example, if someone is speaking in front of a video camera and you don’t want them to hold an interview microphone up to their mouth, the solution is to use an off-screen shotgun mic.
Shotgun mics have a narrower focus (sometimes referred to as more "reach") than an average microphone. However, shotgun mics are not the audio equivalent of a photographic telephoto lens. Even though they do an above-average job of picking up sounds that originate from a short distance away, they always sound better when they’re physically close to the sound source. That’s why whenever you use the SGH-6 shotgun capsule, you should always strive to get as close as possible to the sound source, which often means hovering right at the edge of the frame of a shot.
EXH-6 Dual XLR/TRS Combo Capsule
Need more inputs?
If you need more inputs, simply plug in the EXH-6 Dual XLR/TRS Combo capsule. It allows you to connect two additional discrete channels for external microphones, instruments, mixers or portable music players.
Both EXH-6 inputs are combo jacks that accept either XLR or ¼" balanced (TRS) or unbalanced (TS) connectors. They can handle both mic- and line-level signals, which means that you can connect either microphones or line-level devices like mixers, portable music players, electronic keyboards, or electric guitars or basses with active electronics (passive electric guitars or basses can also be connected with the use of a mixer or effects device). Internal switching contacts automatically detect the circuit of choice.
Each EXH-6 input offers a dedicated analog gain control knob as well as a -20dB pad that allows you to prevent distortion even when high-level signals are introduced; in fact, with the use of the Pad switch, the H6 can input 30dB louder signal and 14dB softer signal than any other Handy Recorder model. In addition, a built-in instrumentation amp allows signals to be transmitted with minimal noise even when long cables are used.
