Used Aphex 228 Audio Line Converter 8 Channel

Used Aphex 228 Audio Line Converter 8 Channel

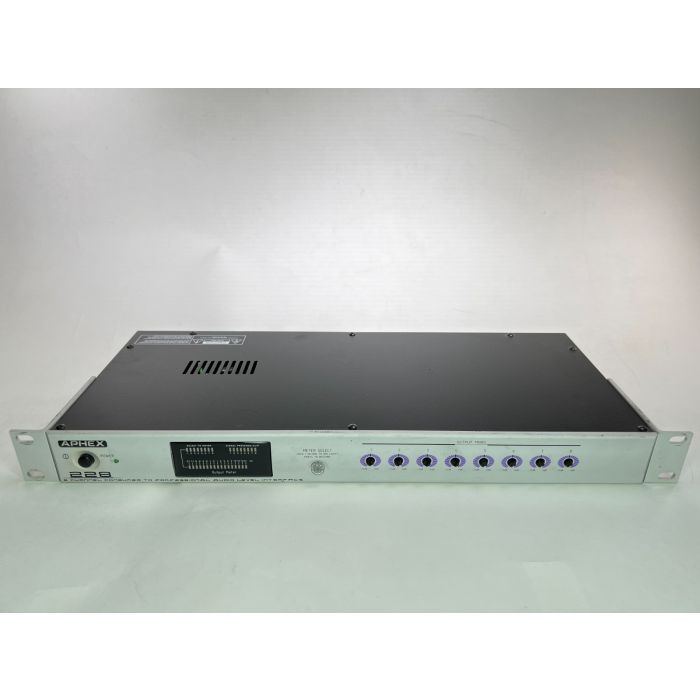

Used Aphex Model 228 8-channel Level Converter

Condition: shows use wear and tear but works great. Some scratches

If you have consumer-level outputs and want to transfer them into a professional-level inputs, you need the Aphex 228 converter. The Model 228 from Aphex is an 8-in, 8-out level converter takes the outputs from your consumer device and delivers pro-level +4 inputs to your studio or broadcast gear. You get accurate (and selectable) front-panel metering and individual output trims on the Model 228, this allows you to easily adjust and monitor each channel. Inputs are provided via eight unbalanced RCA jacks, while eight quality balanced XLR connectors provide output. This is a perfect and true professional level convert.

Features :

• Inputs: 8 x unbalanced RCA
• Outputs: 8 x balanced 3-pin XLR Male
• Gain Translation: 11.78db (adjustable +/-6 Db)
• Frequency Response: -3dB @ .16Hz and 80khz
• THD @ Max Output: Less than .001% at MOL
• IMD @ Max Output: Less than .001% at MOL
• Output Noise: Better than -90dBu, input shorted
• SNR: 94db
• Dynamic Range: 114dB
• Max Output Level (MOL): +24dBu
• Max Input Level: 3.55V RMS
• Dimensions: 19" W x 1.75" H x 9" D (482.6mm x 44.5mm x 228.6mm)
• Power Supply: Internal, fused
• Net Weight: 5 lbs.
