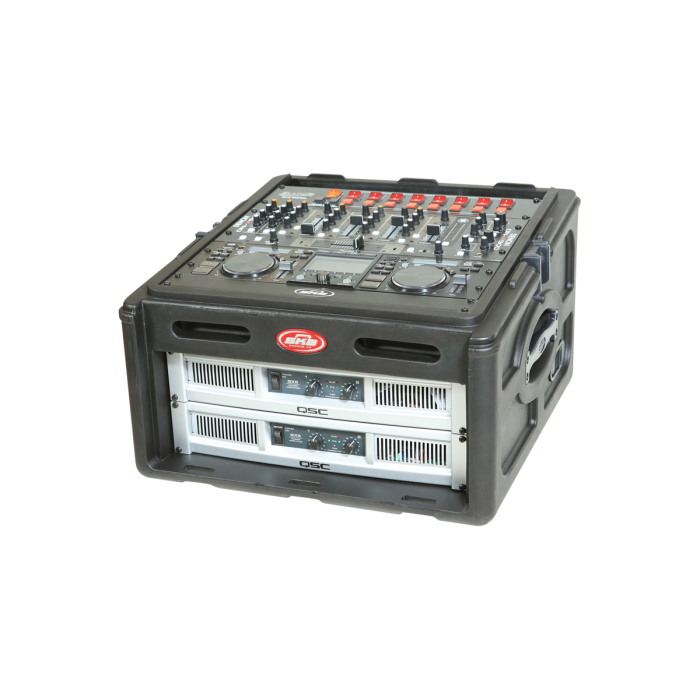

The 1SKB-R104 is a 10U slanted top and 4U front, rack case that features steel threaded rails, hard lid and doors, side access ports (for cable routing) and has enough space to mount the AV-8 with the lid closed! The one piece base is roto-molded of Linear Medium Density Polyethylene (LMDPE) while the hard front and rear doors and lid are Injection molded of Rubber Modified Styrene (RMS). The back lid provides maximum access to the rack gear. Two TSA locking SKB patented trigger latches secure the lid while the flat hard top allows for stacking in transport and storage.
Features
10U Slanted rackmount on top
4U rackmount in front
Room for cables
Hard lid and doors
Side access ports for cable routing
Injection molded front and rear doors and lid
Two TSA locking patented trigger latches
Stackable for storage and transport
Specifications
Exterior Length
23.75 in
60.33 cm
Exterior Width
23.50 in
59.69 cm
Exterior Depth
17.75 in
45.09 cm
Carton Length
25.50 in
64.77 cm
Carton Width
24.00 in
60.96 cm
Carton Depth
18.50 in
46.99 cm
Rack Space Units Top
10
10
Rack Space Units Bottom
4
4
Rack Depth Rail to Rail
6.00 in
15.24 cm
Rack Depth Front Rail to Back Lid
19.50 in
49.53 cm
Shipping Weight
27.80 lb
12.61 kg
Product Weight
24.30 lb
11.02 kg
Rack depth is listed at 6" and that is referencing the top of the rail on the slant portion of the case. At the bottom of the rail, the depth is 3.75". If nothing is mounted in the 4 spaces on the front, then the actual depth at top of the slant rail would actually be 13.5". After the first 3" from the bottom of the slant rail (and with nothing mounted in the 4 spaces on the front), the depth is 11.75". Space between the top of the slant rails and the cover is ~3.5" (to allow XLR/cable connections on mixer with top mounted mic pres). Product weight is without the optional 1SKB-AV8. The 1SKB-AV8 weighs 6 pounds.
