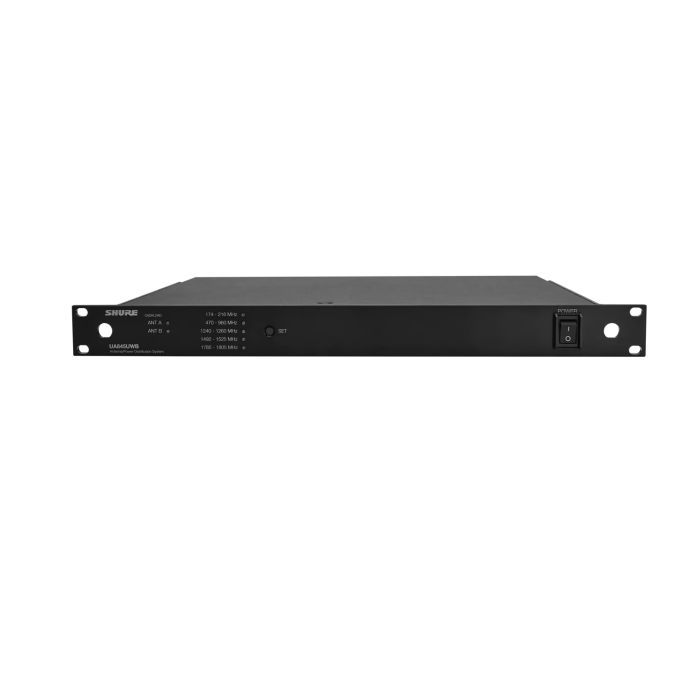

SHURE UA845UWB Ultra Wide Band Antenna Distribution System
The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.
UA845UWB Band Selection on the Front Panel
174 - 216 MHz
470 - 960 MHz
1240 - 1260 MHz
1492 - 1525 MHz
1785 - 1805 MHz
Features
5 selectable frequency ranges
Antenna A and B input overload LED indicators
Five-way RF signal output
Support QLX-D(R), ULX(R), ULX-D(R), SLX(R), and BLX(R) (BLX4R only) receivers
Front-mounting antenna hardware
Rack-mounting hardware
Internal power supply
4 DC power feeds for receivers (15V, 2.5A max)
DC outputs for antenna bias (12V, 300mA max)
UA845UWB models include:
1 UA845UWB Antenna/Power Distribution System
4 Locking DC power cables (for UR4, ULXD4, ULXP4)
4 Non-locking DC power cables (QLXD4, SLX4, BLX4R)
Ten 22 in. BNC cables
Two 6 ft. BNC cables
2 Bulkhead adaptors
1 AC Power Cable (IEC power)
1 Pig-tail AC Cable (for the second UA845UWB or UR4, ULXD4D, ULXD4Q receiver)
1 Rack mount Hardware kit
1 Literature Package
UA845UWB/LC (less cable) models include:
1 UA845UWB Antenna/Power Distribution System
4 Non-locking DC power cables (QLXD4, SLX4, BLX4R)
2 22 in. BNC cables
2 6 ft. BNC cables
2 Bulkhead adaptors
1 AC Power Cable (IEC power)
1 Pig-tail AC Cable (for the second UA845UWB or UR4, ULXD4D, ULXD4Q receiver)
