Rode NT1 1" Cardioid Condenser Microphone

$269.00
In stock
SKU
NT1

1" Cardioid Condenser Microphone

More Information
Video

UPC 698813003044
  • Manufacturer: Rode
  • Large diaphragm 1” gold-sputtered capsule
  • Cardioid polar pattern
  • Internal capsule shock mounting system
  • Ultra-low noise, self noise of only 4.5dB (A)
  • State-of-the-art surface mount electronics
  • 10 year extended warranty when you register your microphone

The NT1 is a revolutionary new 1" diaphragm condenser microphone from RØDE.

Although the body of the new NT1 closely resembles the NT1-A, the microphone has been completely redesigned from the ground up, with the only shared component being the mesh grille.

RØDE’s design engineers approached the NT1 as a marriage of innovation and tradition, starting with the capsule which is a completely new design. Codenamed the HF6, it is the perfect example of RØDE’s fusion of artistic design approaches and cutting-edge manufacturing techniques, and features a sound signature reminiscent of the famous microphones of old while at the same time exhibiting extremely low noise.

It has been developed with a focus on detailed midrange response, coupled with silky smooth high frequencies, and warm, round, bass reproduction to make the NT1 an absolute standout in its class.

In another world-first for RØDE, the transducer itself is suspended inside the microphone using Rycote’s industry-leading Lyre system, minimizing external vibrations at the capsule level. The capsule is then married to high-grade electronics that have been designed to provide the lowest noise level of any studio microphone available. The NT1 is an incredibly quiet microphone, measuring only 4.5dBA of self-noise.

Its body is machined from 6061 aluminium and then nickel plated for resistance against corrosion. Finally it is coated in a durable, military-grade ceramic layer, using advanced electrostatic application techniques developed by RØDE to ensure an extremely hard wearing finish that is resistant to scratches or marks.

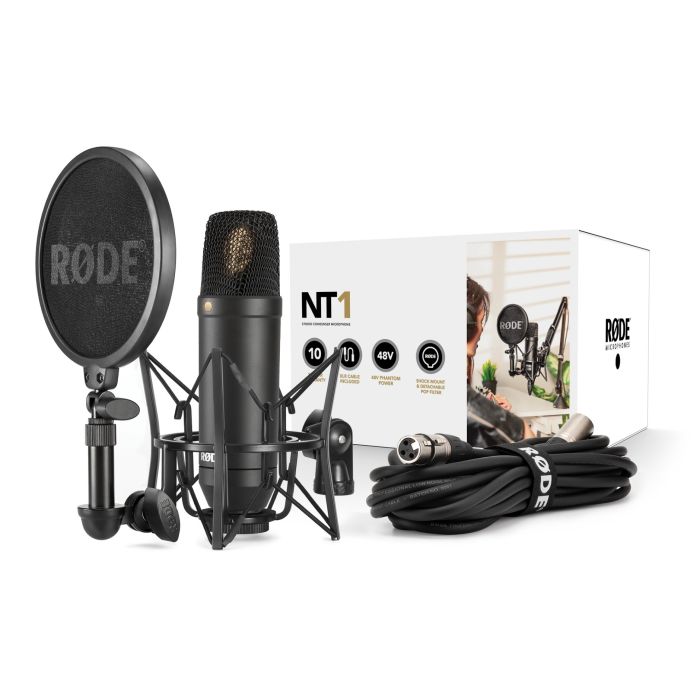

The NT1 is supplied with the SM6, a high-quality suspension shockmount that provides isolation from external physical factors that may cause unwanted rumble and vibrations in the microphone. It includes a removable pop shield with two axes of adjustment and a telescopic arm for ultimate application versatility.

The NT1 is designed and made in Australia, and is covered by RØDE's industry-leading 10 year warranty.

NT1 SPECIFICATIONS
Acoustic Principle Pressure Gradient
Active Electronics JFET impedance converter with bipolar output buffer
Capsule 1.00"
Polar Pattern Cardioid
Address Type Side
Frequency Range 20Hz - 20kHz
Output Impedance 100Ω
Maximum SPL 132dBSPL
Maximum Output Level 8.0mV (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity -29.0dB re 1 Volt/Pascal (35.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted) 4dBA
Power Options +24V phantom power+48V phantom power
Weight 440.00g
Dimensions 187.00mmH x 50.00mmW x 50.00mmD
Output XLR Output
Warranty 1 year with free extension to 10 years following registration
