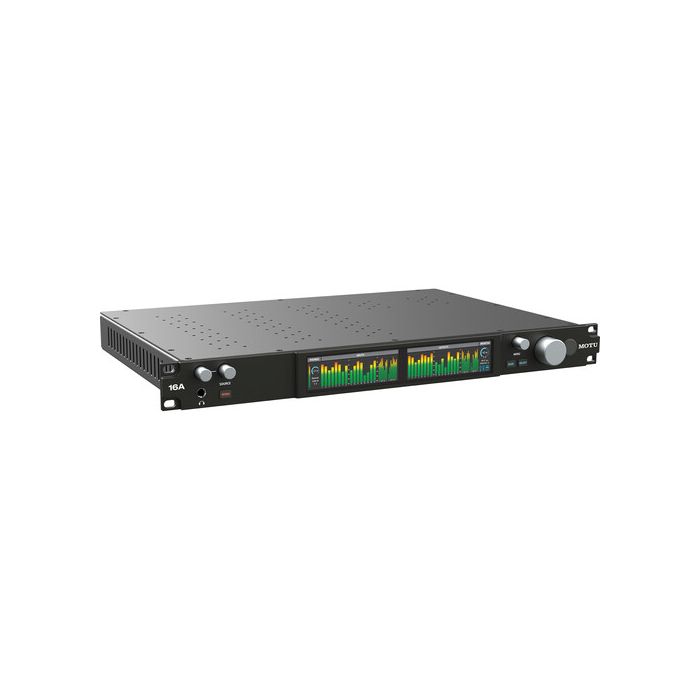

Motu 16A 32-in/32-out Hybrid Thunderbolt/USB 2.0 Audio Interface

$1,495.00
Out of stock
SKU
9320
Motu 16A 32-in/32-out Hybrid Thunderbolt/USB 2.0 Audio Interface
More Information
UPC 839128005921
  • Manufacturer: MOTU

MOTU 16A hybrid audio interface

16 balanced analog inputs and outputs, the 16A serves as an excellent conduit for your outboard microphone preamplifiers and other studio gear, and an additional 16 channels of I/O on ADAT optical ports provides you with plenty of expansion for multi-channel mic pres and more. Thanks to its Thunderbolt connectivity, latency is no hurdle for the 16A, though the onboard DSP mixer offers latency-free routing for monitoring and mixing. MOTU's AVB Ethernet lets you network multiple AVB interfaces to your 16A, and advanced capabilities even let you use it as a standalone, iPad-controlled digital mixer.

With a mere -110dB THD+N of self noise, this 16A's 16-channel analog I/O offers you some of the cleanest audio around, and an additional 16 channels of digital I/O via ADAT optical ports brings your total channel count to 32 x 32. To go with this impressive selection of high-quality I/O, MOTU gave the 16A ultra-fast Thunderbolt connectivity (in addition to USB 2.0), so you get epically low system latency.

DSP-fueled mixer onboard gives you the added benefit of EQ, compression, and effects

Granted, with the MOTU 16A's extremely fast Thunderbolt connection, system latency isn't much of an issue to begin with, but the onboard DSP mixer still offers a number of advantages you'll find useful in a variety of settings, such as when you're connected via USB. For starters, this digital mixer supports up to 48 inputs (via AVB expansion) and 12 stereo busses, allowing you to set up extremely complex routing schemes completely independent of your computer. In fact, if you connect a wireless router to your 16A, you can access all of its internal mixing functions, including effects and processing, via an app on your iOS device, turning this powerful audio interface into a fully capable standalone mixer. Speaking of onboard processing and effects, whether you're in the studio or onstage with your 16A, you'll find a ton of uses for its DSP EQ, compression, gate, and reverb.

Expand your production system with additional AVB networkable audio interfaces

Another extremely cool use of the 16A's Ethernet connection is the ability to link more MOTU AVB equipped audio interfaces to it. You can do this in one of two ways: directly via a simple Ethernet cable or as part of an audio network via one or more MOTU AVB Switch. If you go with just a single Ethernet cable, you can easily link a second 16A or other AVB ready device directly to your first one. With MOTU AVB Switches, you can create an audio network of up to five units, potentially linking hundreds of channels of I/O across multiple rooms. All over standard Cat-5e Ethernet cable.

Technical Specifications:

Sample rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Analog inputs 16 x 1/4" TRS line inputs (balanced/unbalanced)
Analog outputs 16 x 1/4" TRS line outputs (balanced)
Digital I/O 2 banks (16 ch) of ADAT optical at 1x sample rates
1 bank (8 ch) of SMUX optical at 2x sample rates
Stereo RCA S/PDIF up to 96 kHz (with SRC on input)
Total I/O 32 inputs and 32 outputs (64 total) at 1x sample rates
24 inputs and 24 outputs (48 total) at 2x sample rates
16 inputs and 16 outputs (32 total) at 4x sample rates
Computer I/O 1 x Thunderbolt (compatible with 1 and 2)
1 x USB 2.0 audio class compliant (3.0 compatible)
Sync I/O 1 x word clock in
1 x word clock out
Front panel
4 x switches • menu navigation
324 x 24 pixel LCD for level meters / menu nav
1 x AC power switch
Power International 100-240V autoswitching supply
50-60 Hz • 0.5A max

Mac System Requirements

  • 1 GHz Intel-based Mac or faster
  • 2 GB RAM; 4 GB or more recommended
  • Mac OS X version 10.8 or later
  • Available Thunderbolt or high-speed USB 2.0 port
  • A large hard drive (at least 500 GB for recording)

Windows System Requirements*

  • * Windows support is coming soon…
  • 1 GHz Pentium-based PC compatible or faster
  • 2 GB RAM; 4 GB or more recommended
  • Windows 8 or later
  • Available Thunderbolt or high-speed USB 2.0 port
  • A large hard drive (at least 500 GB for recording)

Web App Support

  • Any web client platform: Mac, Windows, Linux, iOS, Android
  • Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
  • Web client must be connected to the same network as the MOTU AVB interface by wire or Wi-Fi.

Included Software

  • Thunderbolt and USB 2.0 drivers
  • MOTU AVB Discovery App for Mac (finds connected MOTU interfaces)
  • MOTU AVB Discovery App for iOS (available from Apple App Store)
  • MOTU AVB Control web app (served from the hardware itself)
  • AudioDesk 4.0 (available as a separate download)

Operating Systems

  • For computer audio I/O: Mac OS X 10.8 or later; Windows 8 or later*
  • For web app control: Mac, Windows, Linux, iOS, Android

Analog I/O Specifications


Connector type
Dynamic range
(A-weighted)
THD+N
(unweighted)
Max
level
Trim range
(in 1 dB steps)
Line output 1/4" TRS, balanced, tip hot 123 dB -110 dB +20 dBu 24 dB (-4 to +20 dBu)
Line input 1/4" TRS, bal/unbal, tip hot 117 dB -110 dB +24 dBu 22 dB (+2 to +24 dBu)

Compatible Mac Software

The 16A ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:

  • MOTU Digital Performer
  • Avid Pro Tools (version 9 or later)
  • Apple Logic Pro
  • Apple Logic Express
  • Apple Garage Band
  • Apple SoundTrack Pro
  • Ableton Live
  • Propellerhead Record & Reason
  • Steinberg Cubase
  • Cockos Reaper
  • Native Instruments Kontakt
  • Waves stand-alone apps (and plug-ins, via compatible host)

Compatible Windows Software (Windows support coming soon…)

The 16A ships with standard Wave and ASIO drivers for Windows 8 for compatibility with virtually all Wave-compatible audio apps, including:

  • MOTU Digital Performer
  • Avid Pro Tools (version 9 or later)
  • Ableton Live
  • Cakewalk Sonar
  • Steinberg Cubase
  • Propellerhead Record & Reason
  • Image Line FL Studio
  • Sony Vegas Pro
  • Sony Sound Forge
  • Sony Acid
  • Cockos Reaper
  • Native Instruments Kontakt
  • Waves stand-alone apps (and plug-ins, via compatible host)
