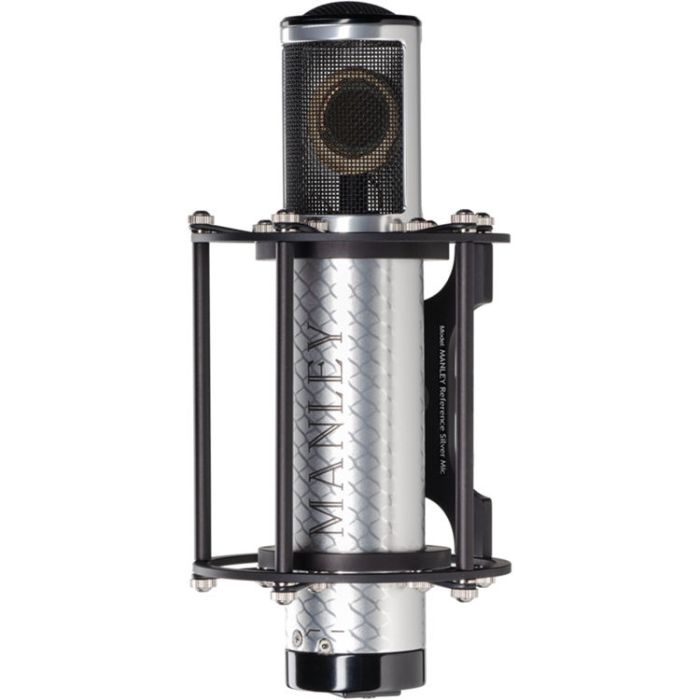

A Timeless Tool for Timeless Tone: The Manley Reference Silver Tube Microphone
For the recording professional seeking pure, uncolored signal capture with the weight and dimension of classic analog circuitry, the Manley Reference Silver stands as a benchmark. This American-made, large-diaphragm condenser microphone delivers a wide, honest frequency response and precise transient detail, all while imparting the rich, smooth character only a true vacuum tube can provide.
Engineered for versatility and fidelity, its switchable cardioid and omnidirectional patterns make it an impeccable choice for a vast range of sources—from the nuanced complexity of acoustic guitars and grand pianos to the powerful impact of drums and brass. It has earned a particular reputation as a vocal microphone of the highest order.
Precision at the Source: The Capsule & Grille
The heart of the Reference Silver is its hand-built, single-sided 1” capsule, featuring a 5-micron evaporated gold diaphragm. This design, inspired by the legendary vintage Sony C-37A, provides exceptional sensitivity and a rich tonal balance. The open-weave, stainless-steel grille ensures zero-loss acoustical transmission, preserving critical high-frequency content without dampening or resonance.
The Soul of the Signal: Tube Amplification & Manley Iron
The fragile signal from the capsule is immediately strengthened by a discrete FET before being handed off to the 5670 vacuum tube. This tube operates in a constant-current source circuit for minimal noise and maximum consistency. The amplified signal then passes through a hand-wound Manley IRON™ nickel-core output transformer, which delivers the robust, musical voltage your preamp expects. The result is a sound that is warm and detailed, never sibilant, boxy, or harsh—consistently stunning on vocals, saxophones, and any source demanding both clarity and character.
Silent, Stable Power: The Foundation of Fidelity
A dedicated, fully regulated tube power supply ensures absolute quiet and stability. All voltage rails feature super-low impedance, and a proprietary high-frequency switching design eliminates any 50/60 Hz power line ripple, resulting in a noise floor as black as silence itself.
Built to Perform, Designed to Last
- Crafted in Chino, California, every Reference Silver is a study in robust construction:
- Body: Etched, silver-anodized aluminum
- Shock Isolation: Precision suspension within a rubber shockmount
- Protection: Genuine leather capsule bag and a rugged travel case
Technical Summary:
- Transducer Type: Large-Diaphragm Tube Condenser
- Capsule: 1” edge-tensioned, single-sided with 5-micron evaporated gold diaphragm
- Polar Patterns: Switchable Cardioid & Omnidirectional
- Frequency Response: 10 Hz – 30 kHz (Amplifier response to 60 kHz)
- Head Amplifier: 5670 Vacuum Tube
- Output Stage: Hand-wound Manley IRON™ Output Transformer
- Special Features: Constant-Current Tube Operation, Zero-Ripple Power Supply, USA-Made
The Manley Reference Silver Tube Microphone: where the transparency of a modern transducer meets the undeniable musicality of classic tube warmth. Capture the truth, infused with beauty.
