IsoAcoustics 50x107 Adapter For V120 Isolation Mount

V120 50x107 Adapter

Attaches your speaker to the V120 L-Bracket or C-Bracket with four mounting holes that are positioned 2” W x 4 ¼” H (50.8 x 107.9mm).

Mount studio monitors to V120 speaker brackets

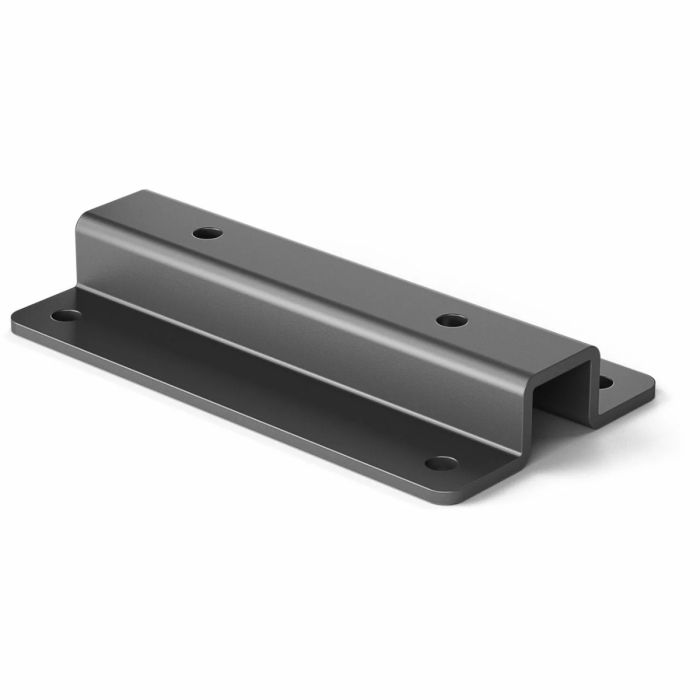

The IsoAcoustics 50×107 Adapter is a strong and sturdy steel mounting plate that bolts to your speaker and attaches to the V120 L-Bracket and C-Bracket for ceiling & wall mount applications.

Features:

• Features hole patterns to match speakers with mounting points: 2” W x 4 ¼” H (50.8 x 107.9mm) and includes M6 and ¼”-20 fasteners.
• Compatible with speaker models that include JBL, M&K Sound and Tannoy.
• Compatible with the IsoAcoustics V120 Mount. The V120 is a ceiling and wall mount designed for professional audio speakers.

Specifications:

• Dimensions (LxWxH): 2.8” x 5”x 0.8” (71mm x 128mm x 20mm)
• Weight: 0.75lbs (0.34kg)
• Package Includes: V120 50×107 Adapter (1), M6x12 Bolt (2), Lock washer (6), M6 Nut (2), M6x16 Bolt (4) & ¼”-20 Bolt (4)

The 50x107 Adapter as part of your V120 Mount setup

This product works as part of the V120 Mount system.  The 50×107 Adapter is designed to attach your studio monitors to either an L Bracket or C Bracket.

Take a look at our visual guide to see if it is the right fit for your setup.
