Inward Connections USED Vac Rack TSL 3 Dual Pre Amp (Luigi)

Inward Connections USED Vac Rack TSL 3 Dual Pre Amp (Luigi)

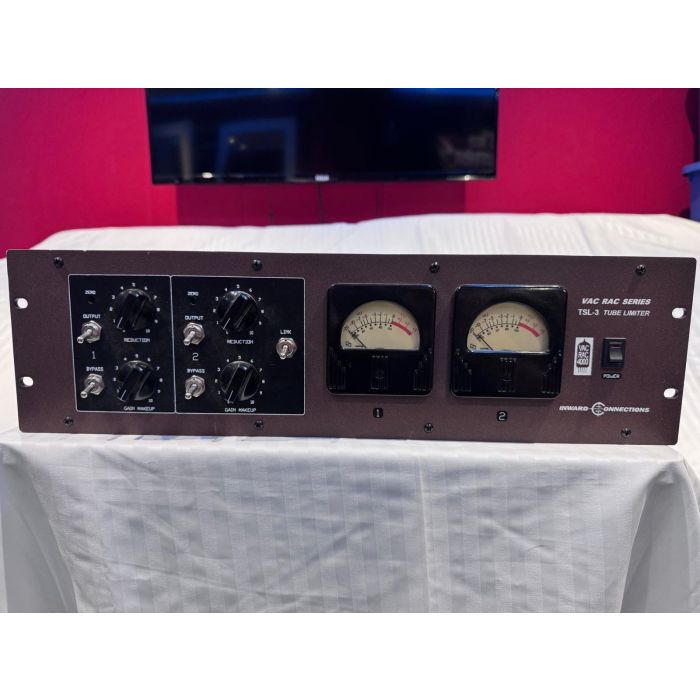

The Original Inward Connections Vac Rac TSL-3

Excellent condition, fully functional, and sounds incredible. There is some typical rack wear-please refer to the photos-but the front panel remains in great shape overall.

Add warmth and musical tube character to your tracks with the highly respected Vac Rac TSL-3. Renowned among audio professionals, it's especially valued for how effortlessly it helps vocals sit in a mix-often eliminating the need for manual rides. It adds rich, euphonic coloration without sounding muddy or "tubby," and its smooth transient handling makes it a powerful tool for vocals, bass, and mix buss applications alike. A studio essential for those seeking classic tube tone with precision control.

Specifications:

• Gain make-up level
• Gain reduction control
• Bypass switch
• Output/Gain reduction switch mode
• Zero adjust trim
• Master Link Switch
• Large 3"x3" VU meter
• Illuminated VU meters
• Tubes used in both input channels: Input stage - 6072A, Output stage - 12BH7A
• Power Supply: Pure Class A high voltage tube design using 6BM8
• Unit dimensions: 3 rack space. 5.25" Height, 19" Width, 11.5" Depth
• Rugged steel chassis design
• Classic vintage look
• Gain Reduction: up to 40db
• Input Impedance: >100k ohms
• Frequency Response: +/- 0.5 dB @ 20Hz to 20KHz
• Output Signal to Noise Ratio: -85dB
• THD + Noise:
• .015% @ 20Hz (0dB ref.)
• .085% @ 20KHz (0dB ref.)
• .15% @ 20Hz to 20KHz (+30dB ref.)
• Maximum Input Level: +20dB
• Maximum Output Level:
• +20dBm @ 600 ohms
• +34dBv @ 10K
• Output Impedance: 600 ohms transformerless unbalanced output
