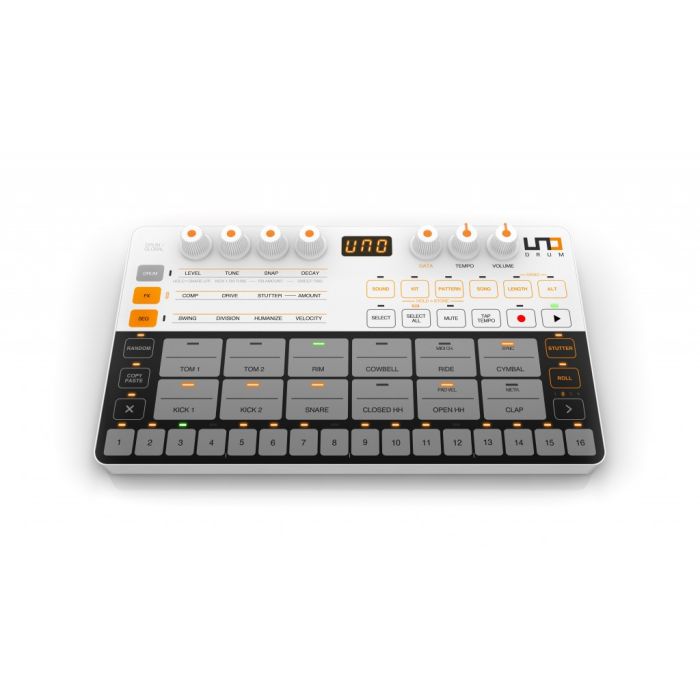

IK Multimedia UNO DRUM Sound And Rhythm Machine
UNO Drum is the ultimate beat creation station for anyone and everyone to create warm, punchy, high-quality, and inspiring grooves. Made in collaboration with Italian analog specialist Soundmachines, UNO Drum offers 6 analog voices, 54 PCM samples and up to 11 voice polyphony. Save up to 100 kit presets, 100 pattern presets, and take advantage of an intuitive 64-step sequencer to add professional drum grooves to your music. UNO Drum offers 3 master effects - compression, drive and stutter, and 5 performance effects, alongside 12 drum elements to create your own unique sound. Plus, UNO Drum easily integrates with your existing gear, with USB and 2.5mm MIDI, audio input for daisy-chaining, and an intuitive software editor you can use as a plug-in in your sessions, or on your iOS device. Portable and powered by either USB or 4xAA batteries, UNO Drum lets you make music anywhere, without sacrificing features and functionality.
Synthesis:
- Type: Analog/PCM
- Polyphony: 11 voices
- Kick 1 (analog): Level, Tune, Snap, Decay, FM Tune, FM amount, Sweep time
- Kick 2 (analog): Level, Tune, Snap, Decay
- Snare (analog): Level, Tune, Snap, Decay, LPF
- Closed HH: Level, Tune, Decay
- Open HH: Level, Tune, Decay
- Clap: Level, Decay
- PCM: Level, Tune, Decay
- All element are Velocity responsive
Preset
Keyboard and controls
- 5 Encoders (4 matrix, 1 global)
- 2 Knobs (fixed)
- 12 Multi-Touch Element Pads with 2 velocity.
- 17 Sequencer buttons
- 17 Utility and effects buttons
Sequencer
- 64-step sequencer
- Real-time and step recording with parameter recording
- Up to 8 parameter recording per-step
- Selectable length between 1 and 64 steps
- 4 Division: 16th, 32th, 3/4 and 6/8
- Swing function
Effects
- Analog master compressor
- Analog master drive
- Random
- Stutter with 10 types and adjustable amount
- Roll with 4 roll types and 4 fills
Connections
- Audio Out: Mini-jack 3.5mm stereo (mono summed)
- Audio In: Mini-jack 3.5mm stereo (mono summed)
- 2 x MIDI 2.5mm mini-jack to DIN cables (IN/OUT)
- 1 Micro USB*
Power
- 4x AA Batteries (Alkaline, Ni-Mh)
- Micro USB connector
- Optional UNO Synth Power Bank
Package includes
- UNO Drum
- 1x Micro USB to USB-A cable (60cm/23.62")
- 2x 2.5mm TRS male to MIDI female adapter (10cm / 3.9")
- 4x AA batteries (Alkaline)
Dimensions
- Size: 25.6cm/10.1" x 15cm/5.91" x 5cm/1.96"
- Weight: 400g/14.1oz (excluded batteries)
iOS devices
- Compatible with 64-bit iPad. iOS 10 or later is required.
Mac
- 64-bit application. Requires a 64 bit CPU and Operating System.
- Mac(R) (64-bits)
- Minimal: macOS 10.11 or later.
Windows(R) (64-bits)
- Minimal: Windows 8 or later.
