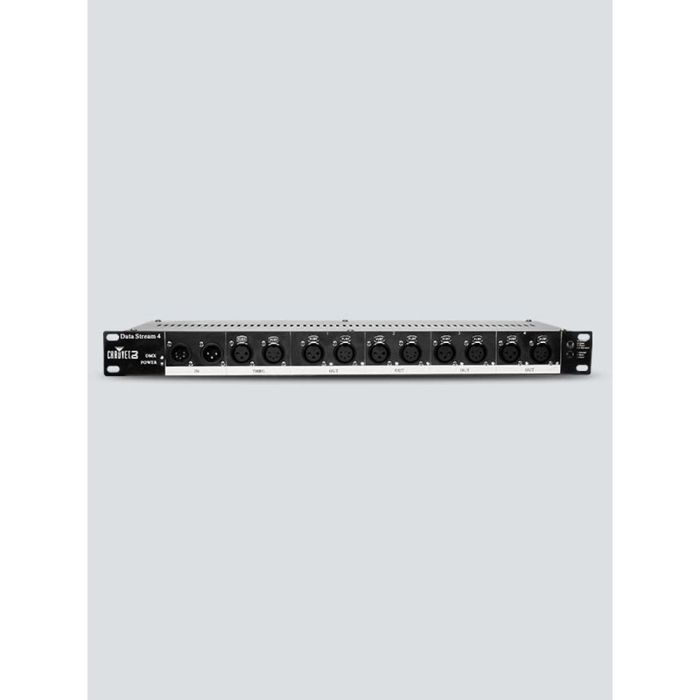

Chauvet DJ Data Stream 4 DMX-512 optical splitter

Chauvet DJ Data Stream 4 DMX-512 optical splitter

Highlights

• Universal, optical DMX splitter provides 4 outputs from a single input
• Increase flexibility with 3- and 5-pin XLR connections for each input/output
• Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units
• Electrical isolation between input and output
• Conveniently mount with a shorter cable run using the single space (1U) mounting rack

Specifications

• DMX Channels: 3- and 5-pin
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 3W, 0.1A @ 120V 60Hz
  5W, 0.1A @ 230V 50Hz
• Weight: 5.8 lb (2.6 kg)
• Size: 19 x 5.3 x 1.8 in (483 x 134 x 46 mm)
• Approvals: CE

What's Included

• Power cord
• Warranty card
