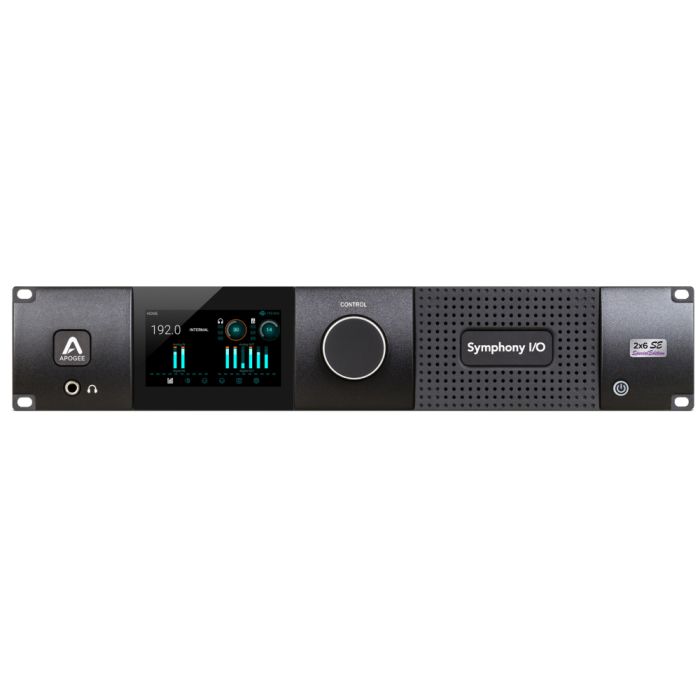

Apogee Symphony I/O Mk II 2×6 Audio Interface

Symphony 2x6 Special Edition AD/DA.  Designed specifically for mastering engineers, whose critical work demands ultimate sonic performance, Symphony I/O Mk II 2x6 SE offers the highest quality AD/DA conversion of any Apogee converter ever.

Symphony I/O Mk II 2x6 SE takes advantage of the latest advancements in digital and analog audio technology offering two line level inputs with 124 dB (A) of dynamic range, THD+N of -116dB and six line level outputs with 131dB (A) dynamic range and an astonishingly low THD+N of -118dB. Lucas Van Der Mee, Apogee’s Senior Hardware Engineer, comments “These are real measurements, taken with our lab test equipment and not just ‘data sheet’ specs. The new 2x6 SE will outperform just about anything in the market...at any price.”

The D/A stage incorporates the latest DAC technology, carefully optimized to offer mastering engineers the ultimate transparency to make critical adjustments with confidence. Whether you’re working with analog outboard gear or digitally in a DAW on your computer, the 2x6 SE retains every bit of warmth, punch and image in your recordings and signal processing chain.

Symphony I/O Mk II 2x6 SE is now available in Thunderbolt and Pro Tools HD configurations, or may be purchased separately to expand existing Symphony I/O Mk II configurations. Symphony I/O MkII 2x6 SE configurations (Thunderbolt or Pro Tools HD) are available for $2995 USD and 2x6 SE expansion module is available for  $1895 USD from authorized Apogee dealers worldwide.

Highlights:

• Highest Quality Apogee AD/DA converter
• A/D = 124dB (A) dynamic range, -116dB THD+N
• D/A = 131dB (A) dynamic range, -118dB THD+N
• Available in Thunderbolt or HD configurations
• Also available as expansion module for existing Symphony I/O Mk II
• Inputs
• Analog IN: 2 balanced inputs on 2 female XLR connectors
  AES IN: Stereo input on 1 female XLR connector
  Optical IN: Supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
• SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
• S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
• S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector
• Outputs
• Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
  AES OUT: Stereo output on 1 male XLR connector
  Optical OUT: Supports ADAT, SMUX & S/PDIF
• ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
• SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
• S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connectorS/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector

• Full calibration of analog inputs and outputs via front panel or Apogee Control software
